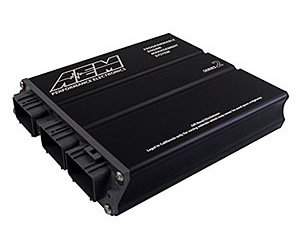

Series 2 EMS / Engine Management Systems 1992-1997 Lexus GS300 3.0L I6
InfoVehicle Info Needed
AEM ELECTRONICSPART NUMBER: 017-30-6101

Series 2 EMS / Engine Management Systems 1992-1997 Lexus GS300 3.0L I6

$1,85399
ShippingShips on 10/15/2026
Lowest PriceLowest Price Guarantee

Lexus/Toyota
    Series 2 EMS / Engine Management Systems
  • 1992-1997 Lexus GS300 3.0L I6
  • 1992-1997 Lexus SC300 3.0L I6
  • 1993-1997 Toyota Supra 3.0L 6-Cylinder

    Outputs
    Injector Outputs12 Peak & Hold
    Coil Outputs6
    Selectable direct drive or 0-5V Coil OutputYes
    Direct plug in, no jumper harness requiredYes
    General purpose LS outputs11
    General purpose HS outputs2
    Individual cylinder ignition trimsYes
    Individual cylinder fuel trimsYes
    High/Low speed fuel pump supportYes
    Inputs
    Trigger inputs (Ref/Sync)4
    Analog voltage inputs14
    Configurable Analog/RTD/Thermister inputs4
    Switch inputs5
    Lambda inputs2x
    Knock sensors2
    User adjustable knock sensor center frequencyYes
    Communication
    USB commsYes
    RS232 commsYes
    Communication cables includedYes
    Fully enabled editing/logging software includedYes
    CAN bus equippedYes
    RS232 datastream output19 ch
    CAN datastream output32 ch
    Communicates with AIM Dash/DataloggersYes
    Communicates with Racepak Dash/DataloggersYes
    DATA Acquisition
    Internal data logging1 MB
    Maximum internal logging rate (per channel)250 Hz
    PC loggingYes
    Data analysis using AEMLogYes
    Functions and Features
    All channels/maps/tuning options unlockedYes
    Boost controlYes
    Groundspeed based boost targetYes
    Nitrous injectionYes
    Staged injectionYes
    Ground speed limitingYes
    Rate of Acceleration ControlYes
    Overrun boost enhancement (anti-lag)Yes
    Gear change ignition cut (shift-without-lift)Yes
    Stepper motor idle controlYes
    Password protected calibrationsYes
    Fuel & Ignition rev limitersYes
    "In cockpit" global fuel trim capabilityYes
    Gear dependent shift lightYes
    Evap/Purge functionYes
    DC Motor control2 Ch
    Software definable "virtual" switch inputs2
    EGT Based fuel trimsYes
    Maximum boost limitNone
    Basic automatic transmission controlNo
    Advanced automatic transmission controlNo
    Physical Dimensions
    Length203 mm
    With178 mm
    Height41 mm
    FinishBlack Anodized

    AEM Series 2 Plug-N-Play Engine Management Systems
    - Legal in California only for racing vehicles which may never be used upon a highway.

    This product fits the following vehicles:
  • 1992 to 1997 Lexus GS300 3.0L I6
  • 1992 to 1997 Lexus SC300 3.0L I6
  • 1993 to 1997 Toyota Supra 3.0L 6 Cyl

AEM offers complete engine control using a vehicle's factory wiring harness and sensors. AEM's Series-2 Plug and Play Engine Management Systems is a culmination of this original program. It combines robust construction with proven AEMtuner Software to deliver total engine control for racing masses. AEM's Series-2 Plug and Play EMS plugs directly into a vehicle's factory ECU harness and requires no additional wiring or hardware. Windows compatible software (XP, Vista, 7) simplifies copying, viewing and data manipulation.

Show More

Features:

  • Delivers complete control of your racecar's engine and driveline
  • Plugs into your racecar's factory wiring harness and uses existing sensors
  • Systems are unlocked and fully enables - never pay for upgrades
  • Works with all AEM gauges and communications with AEMnet enabled electronics
  • Start-up calibrations included
  • AEMtuner software simplifies tuning process
  • Runs on Windows-compatible software
  • Internal Data Logger with 2MB memory
  • Logging software for data analysis
  • Sequential fuel injection
  • Electronics boost control
  • Full idle control
  • Programmable traction control
  • Software-definable knock control
  • Two-step launch control
  • Configurable soft-cut rev limiters
  • Wet or dry nitrous control
  • Laptop tunable via USB or Serial connection

    Note: Legal solely for vehicles used in competition which may never be used upon a public road or highway

Part TypeEngine Control Module
Product LineAEM Series-2 Plug And Play Engine Management Systems
BrandAEM ELECTRONICS
Package Height3.0
Package Width12.0
Package Length12.0
Weight6.0 PG
Part CategoryPerformance Parts
Product TypeEngine Control Module
QuantitySold individually
Vendor Part Number30-6101
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
