Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-50-1200

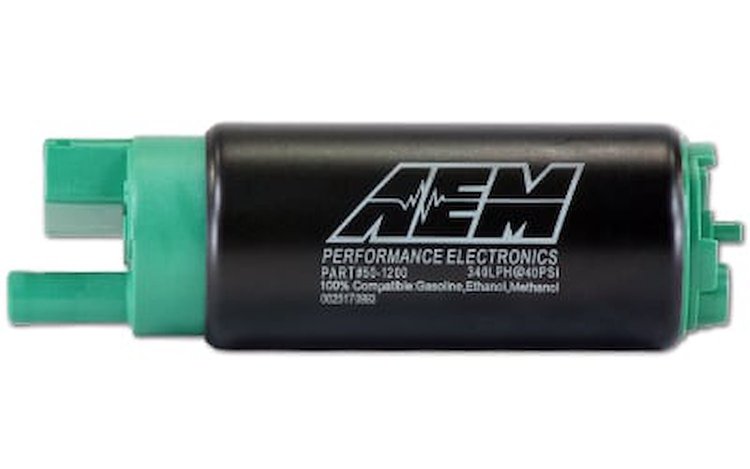

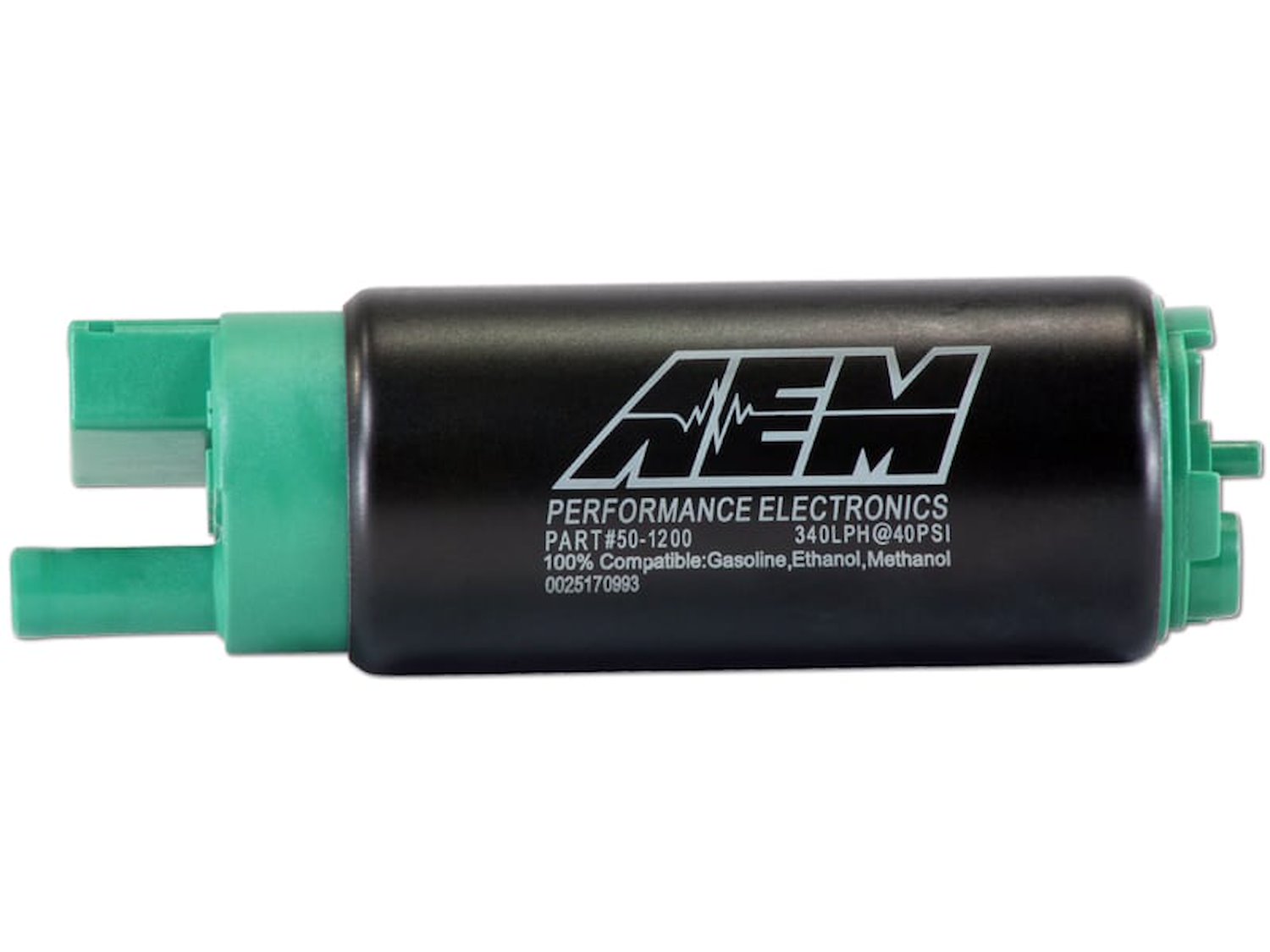

E85 High Flow In-Tank Fuel Pump Semi Universal
$15595
1 left in stock
Ships Today
Lowest Price GuaranteeE85
- E85 High Flow In-Tank Fuel Pump
- Semi Universal
- Offset Inlet
- 81mm Body Length
- 320 LPH (84 GPH) @ 43 PSI
Details: - Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design
- Each pump is tested to flow 320 lph @ 43 PSI
- 39mm diameter fits most applications
- Includes pre filter, hose, clamps, flying lead, end cap and rubber buffer sleeve
TECHNICAL SPECS: - Weight: 12.5oz (354grams)
- Outside Diameter: 39mm OD
- External Materials: Black plated steel with laser etching, green end caps
- Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
- Outlet Fitting: 8 mm hose clamp. Offset
- PRV Activation: 80 PSI
- Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS: - Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
- Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
Part TypeElectric Fluid Pump
BrandAEM ELECTRONICS
Package Height2.8
Package Width3.3
Package Length6.3
Weight1.12 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
WarningCalifornia Proposition 65
Emission Code5
Maximum Pressure (Psi)90
Outlet AttachmentHose barb
WarrantyManufacturer's 1 Year Warranty
CategoryAir and Fuel Delivery
Outlet Size (Mm)8
MaterialSteel
Outlet QuantityOne
Free Flow Gph90
QuantitySold individually
Free Flow Lph340
Inlet QuantityOne
Inlet Size (Mm)11
Part TypeFuel Pump
Free Flow Rate320 lph
Pump Body ColorBlack
Product TypeFuel Pump
Sub CategoryFuel Pumps and Related Components
Fuel SystemCarbureted, EFI
Part FitmentSemi Universal
ApplicationUniversal
Vendor Part Number50-1200
Package Qty1
Package TypeEA
