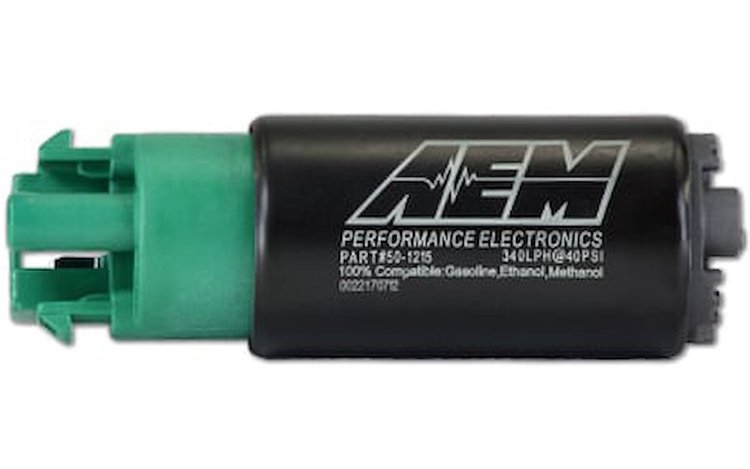

50-1215 Features:

• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
• Designed for high output naturally aspirated and forced induction EFI vehicles
• In tank design
• Each pump is tested to flow 340 lph @ 43 PSI
• Compact body (39 mm diameter x 65 mm length)
• Includes pre filter, hose, clamps, flying lead, end cap and rubber buffer sleeve

TECHNICAL SPECS:

• Weight: 10.4 oz (294 grams)
• Outside Diameter: 39 mm OD
• Length: 65 mm
• External Materials: Black plated steel with laser etching, green/gray end caps
• Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
• Outlet Fitting: 8 mm hose clamp. Offset
• PRV Activation: 80 PSI
• Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

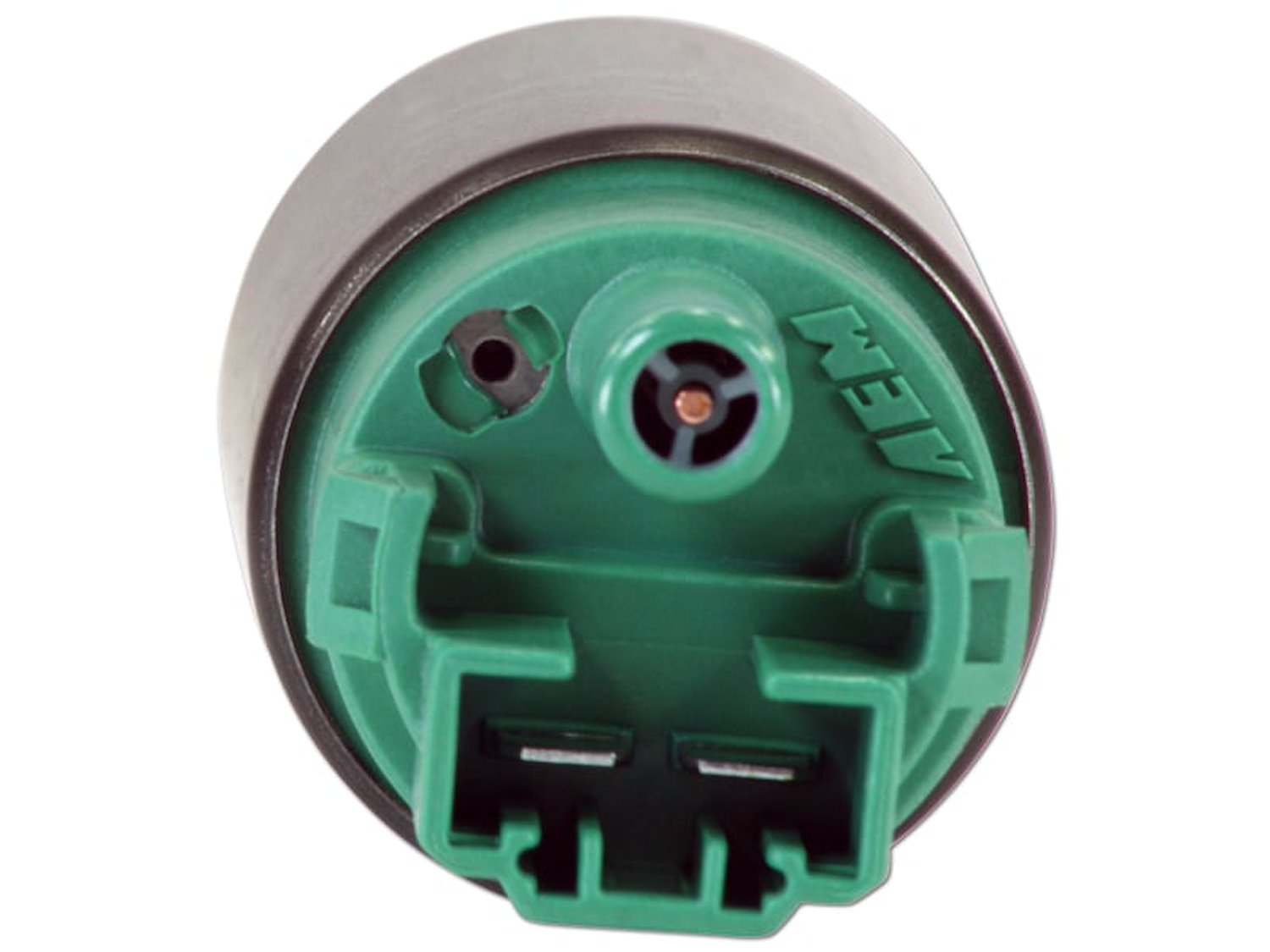

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5 v)
• Current Draw (80 psi): 15 amps (13.5 v)
• Fuse: 15 amps (13.5v), 20 amps (13.5 v) MAX
