Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-50-1220

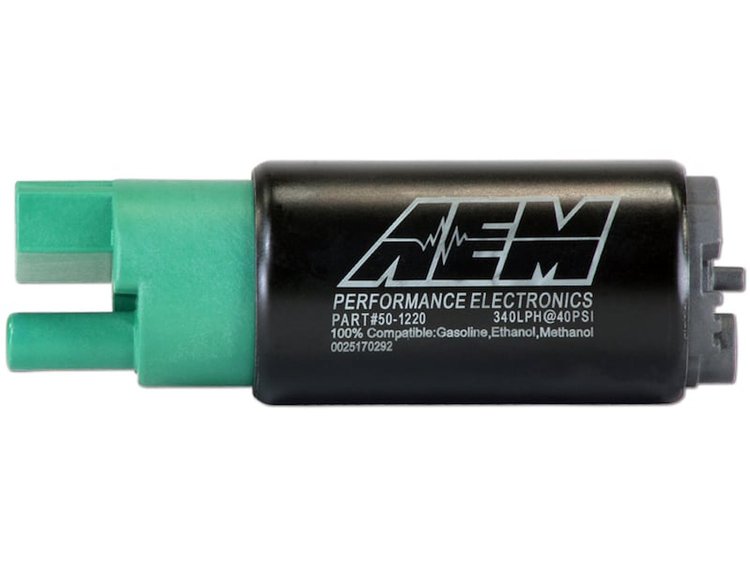

E85 High Flow In-Tank Fuel Pump Semi Universal
$15595
1 left in stock
Ships Today
Lowest Price GuaranteeE85
- E85 High Flow In-Tank Fuel Pump
- Semi Universal
- Offset Inlet
- 65mm Body Length
- 320 LPH (84 GPH) @ 43 PSI
Details: - Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design
- Each pump is tested to flow 320 lph @ 43 PSI
- Compact body (39mm diameter x 65mm length)
- Includes pre filter, hose, clamps, flying lead, end cap and rubber buffer sleeve
TECHNICAL SPECS: - Weight: 10.4oz (294grams)
- Outside Diameter: 39mm OD
- Length: 65mm
- External Materials: Black plated steel with laser etching, green/gray end caps
- Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
- Outlet Fitting: 8 mm hose clamp. Offset
- PRV Activation: 80 PSI
- Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS: - Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
- Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
Part TypeElectric Fuel Pump
BrandAEM ELECTRONICS
Package Height2.4
Package Width2.9
Package Length6.1
Weight0.85 PG
Part CategoryPerformance Parts
Product TypeElectric Fluid Pump
Part FitmentSemi Universal
Vendor Part Number50-1220
Package Qty1
Package TypeEA
