Features:

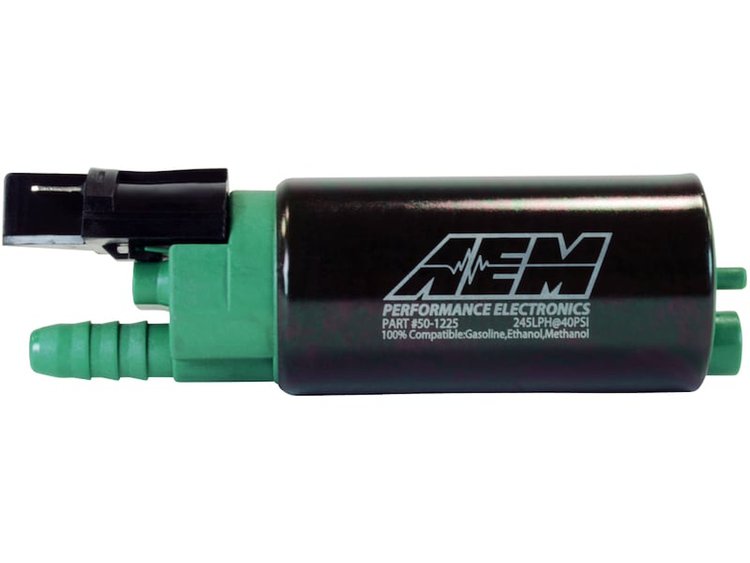

• Direct replacement for 2016-newer Polaris RZR XP Turbo UTV
• Delivers 44% increase in fuel pressure over stock (115 PSI max pressure vs 80 PSI stock)
• Provides 100% increase in flow at 58 PSI base fuel pressure (202 LPH vs 100 LPH stock)
• Supports 482 HP at 22 PSI of boost on gasoline (313 HP @ 22 PSI on E85)
• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
• Each pump is tested to flow 245 LPH @ 40 PSI (202lph @ 58 PSI RZR XP base pressure)
• 37 mm diameter x 70.600 mm length compact body
• Includes fuel pump, pre-filter, fuel hose, and stainless-steel clamps
• Plugs into the factory wiring harness

Technical Specs:

• Weight: 12.500 oz (354 grams)
• Outside Diameter: 36.700 mm O.D.
• External Materials: Black plated steel with laser etching, green end cap

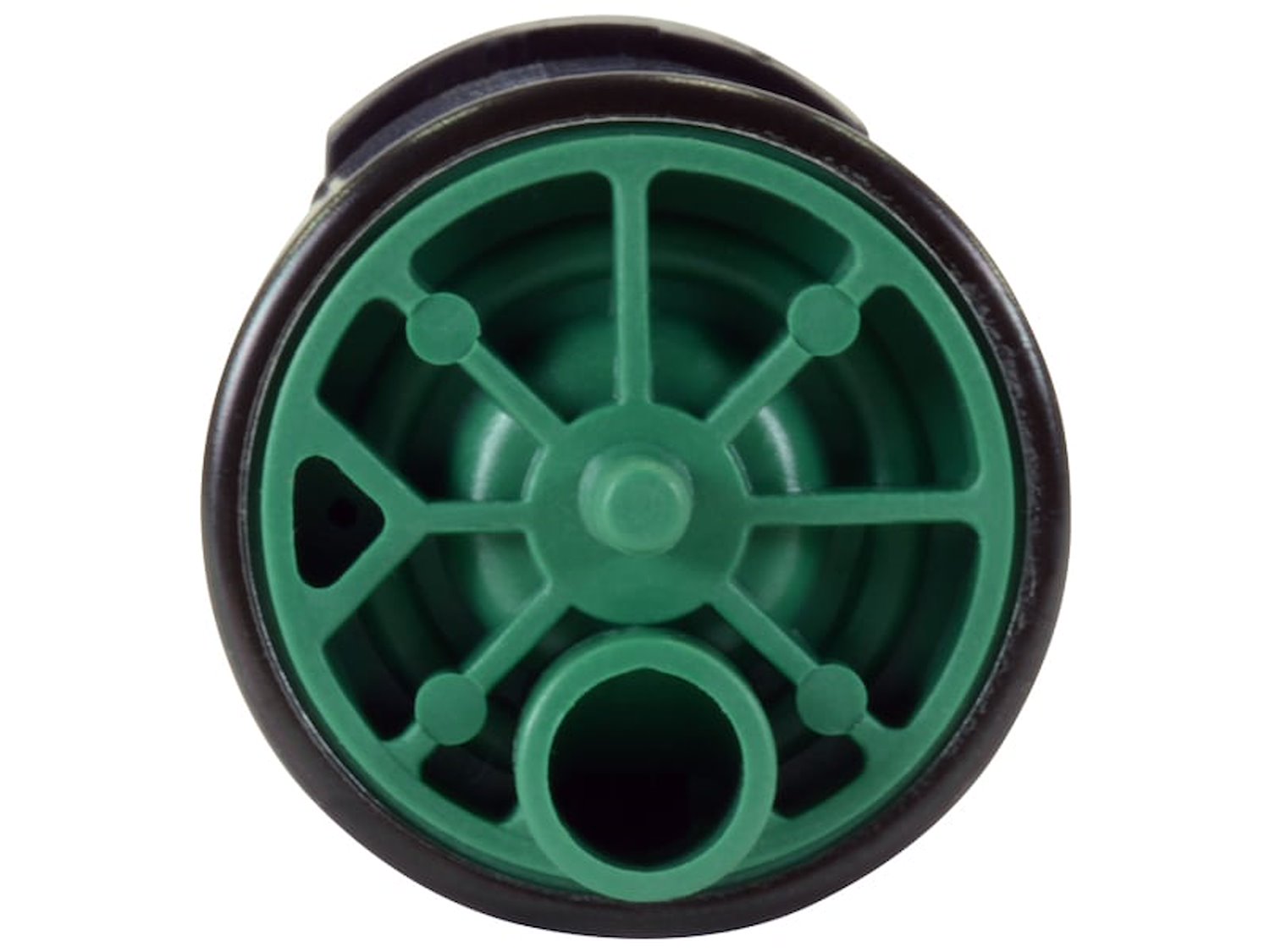

• Inlet Fitting: -7.700 mm I.D., 11.0mm O.D., Offset Inline
• Outlet Fitting: -10 mm hose clamp, barbed. Offset
• PRV Activation: 115 PSI
• Impeller Design: Single Scroll Ceramic Turbine

Voltage Specs:

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5 V)
• Current Draw (80 psi): 15 amps (13.5 V)
• Fuse: 20 amps (13.5 V)
