Made in USA
Fuel Filter With Shut-Off -10AN O-Ring
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-12331

Fuel Filter With Shut-Off -10AN O-Ring

$36417$404.63You Save$40.46
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

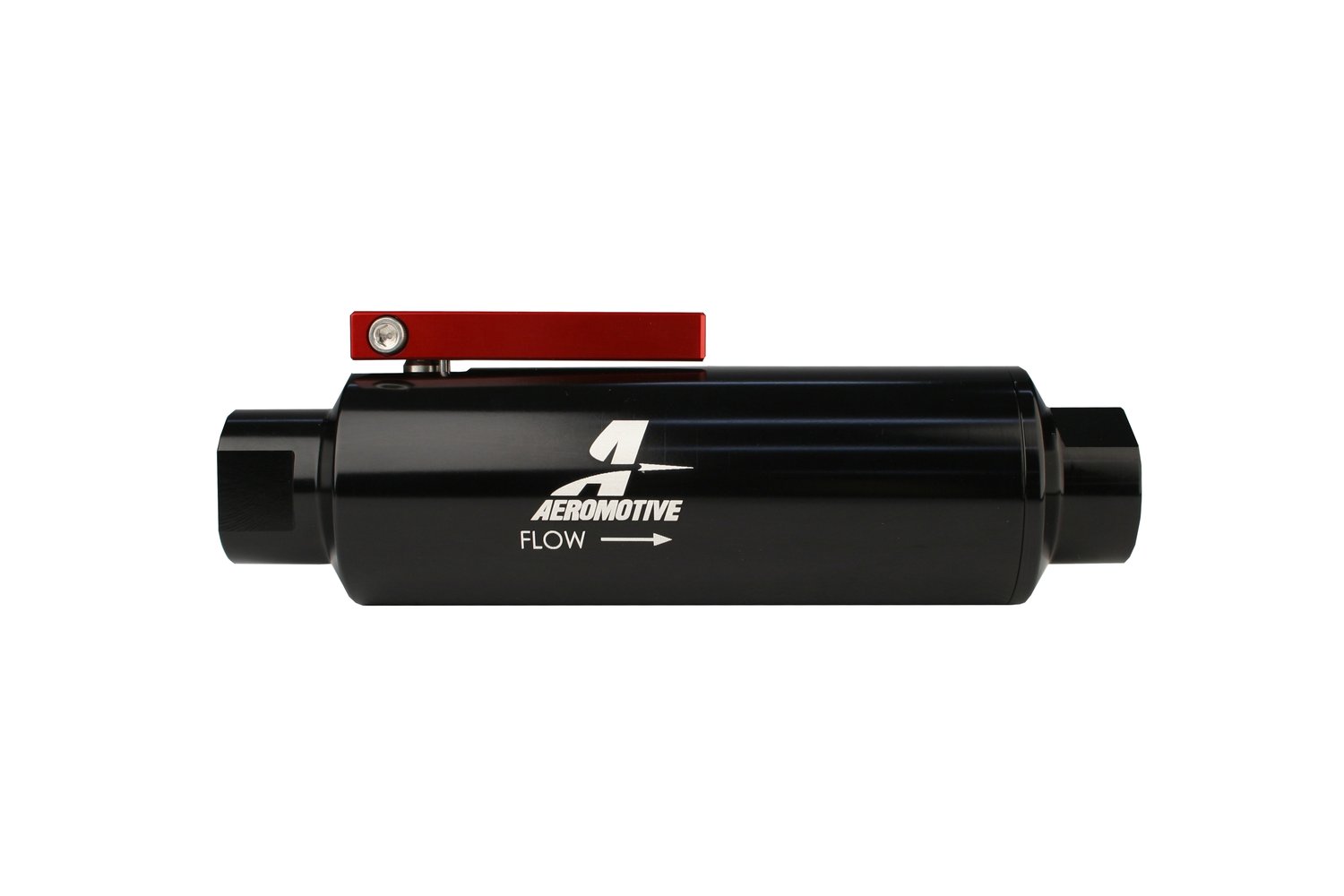

    Fuel Filter With Shut-Off
  • -10AN O-Ring
  • Dimensions: 7-3/8" x 2"
  • 100 micron stainless element

  • shutoff valve fuel filter
  • proprietary stainless steel shutoff valve design
  • 100-micron stainless steel element
  • Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle
  • 7.375" long x 2" diameter
  • Ever take a fuel bath when changing your filter We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-10 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 7.38 long x 2 diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration.

Part TypeFuel Filter
BrandAEROMOTIVE
Package Height4.1
Package Width4.9
Package Length8.5
Weight1.54 PG
Part CategoryPerformance Parts
Smallest Particle Filtered100 microns
Inlet Size-10 AN O-ring
Outlet QuantityOne
Maximum Fuel Pressure (Psi)500
Fuel TypeGas
Mounting Bracket IncludedNo
Inlet Outside Diameter0.625 in (15.875 mm)
Fittings IncludedNo
Clamps IncludedNo
Inlet QuantityOne
Fitting TypeORB-10
Outlet Outside Diameter0.625 in (15.9 mm)
Filter Element IncludedYes
Outlet Size-10 AN O-ring
Filter Element MaterialStainless steel mesh
QuantitySold individually
Overall Length7.375 in (187.3 mm)
Inlet AttachmentFemale Threads
Fuel Filter StyleInLine
Filter Housing MaterialAluminum
Outlet AttachmentFemale Threads
Filter Housing FinishBlack anodized
Part FitmentUniversal
Outside Diameter2 in (50.8 mm)
Vendor Part Number12331
Package Qty1
Package TypeEA
No Questions
No Reviews
