Made in USA

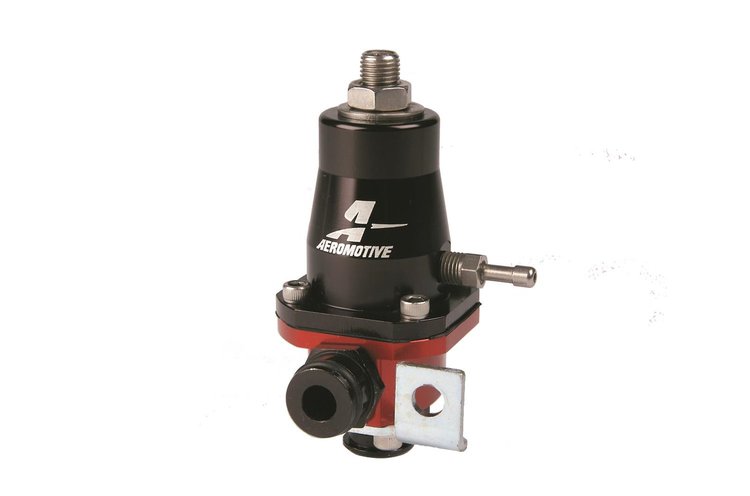

LT1 Rail Mount Adjustable Regulator 1994-97 Camaro/Firebird
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13107

LT1 Rail Mount Adjustable Regulator 1994-97 Camaro/Firebird

$26598
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

New Regulators
    LT1 Rail Mount Adjustable Regulator
  • 1994-97 Camaro/Firebird
  • 1994-96 Impala SS
  • GM 3.1L & 3.4L V6

    May fit other GM Saturn products that use the same regulator configuration as LT1, may also fit some versions of the aftermarket Edelbrock fuel rail.
  • GM LT-1 regulator
  • adjustable from 30-70 PSI
  • stainless steel spring for precise fuel control
  • 94-96 Impala, 94-97 F-Body Camaro/Firebird
  • Originally developed with the GM LT-1 engine specs in mind, these regulators were designed to keep these cars performing at their peak potential. These rail mount EFI regulators fit a variety of factory GM vehicles. Adjustable from 30-70 PSI. Fuel pressure rises on a 1:1 ratio when referencing boost. Stainless steel spring, custom-designed for precise fuel control. A true billet regulator, CAD designed and CNC-machined. Return adapter may be replaced with P/N 15606 for a -06 return line (sold separately). P/N 13106 92 96 Corvette GM Ram-Jet 350 EFI Crate Engine. P/N 13107 94 96 Impala 94 97 F Body Camaro/Firebird GM 3.1L & 3.4L V6 engines.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART


To help your car perform at its peak, Aeromotive's LT1 Adjustable Rail Mount Fuel Pressure Regulators were developed with LT1 specs in mind. They're true billet regulators designed specifically for 1992-96 Corvette, 1994-96 Camaro/Firebird, and 1994-96 Impala SS LT1 engines.

Features:

  • Fully adjustable fuel pressure from 30-70 psi
  • Vacuum/Boost reference on a 1:1 ratio
  • E85 Compatible
  • 1/8" NPT gauge/test pressure port
Show More
  • Stainless steel spring custom designed for precise fuel control
  • CNC-machined aluminum seat, ports, and housing
  • Re-seating after shutdown prevents heat soak conditions
  • Mounting brackets included
Part TypeFuel Pressure Regulator
Product LineAeromotive LT1 Rail Mount Adjustable Regulators
BrandAEROMOTIVE
Package Height2.8
Package Width5.5
Package Length5.7
Weight0.76 PG
Part CategoryPerformance Parts
Regulator FinishRed anodized
Outlet SizeStock
Inlet SizeStock
Boost/Vacuum Rise Ratio1:01
Regulator MaterialAluminum
Pressure Range30-70
Outlet QuantityOne
QuantitySold individually
Boost/Vacuum Reference PortYes
RebuildableYes
Inlet AttachmentStock
Mounting Bracket IncludedYes
Gauge PortYes
Outlet AttachmentStock
Regulator LocationFuel rail mount
Fittings IncludedNo
Inlet QuantityOne
Pressure Range (Psi)30-70
Regulator StyleReturn
Return AttachmentStock
Vendor Part Number13107
Package Qty1
Package TypeEA
