Made in USA

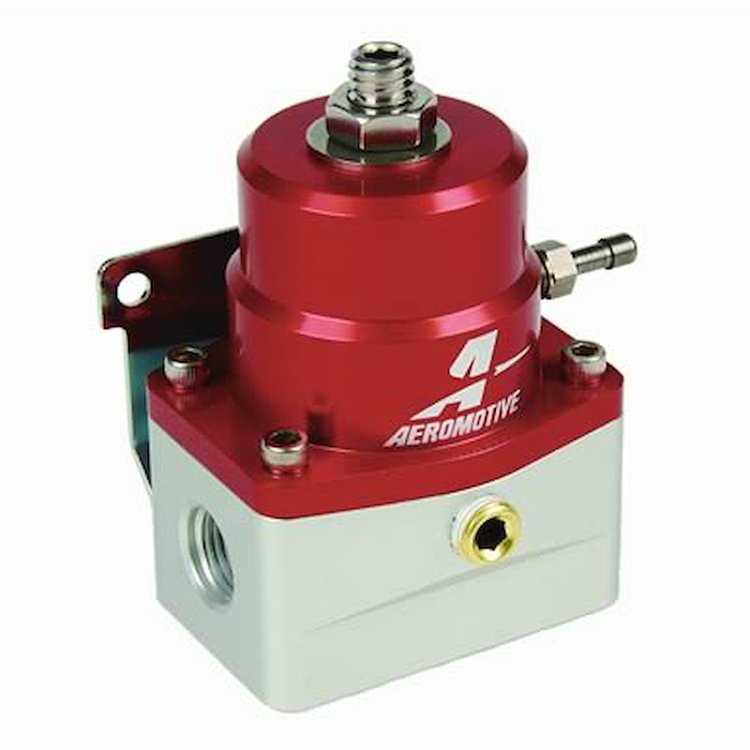

A1000-6 Injected Bypass Regulator
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13109

A1000-6 Injected Bypass Regulator

$23058
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Regulators
    A1000-6 Injected Bypass Regulator
  • ORB-06 Inlet/Outlet Ports
  • ORB-06 Return Port
  • Pressure Range: 40-75 PSI

    Power Planner Diagram

    A750 EFI Dualfeed

  • A1000 EFI bypass regulator
  • adjustable from 40-75 PSI
  • Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotives high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8 NPT gauge port. P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Consistent Fuel Pressure for all Horsepower Levels

    The Aeromotive A1000-6 Injected Bypass Regulator was developed for high-horsepower, fuel-injected applications. Compatible with the A1000 Fuel Pump, this regulator is a cousin to the popular A1000-Injected Bypass Regulator; delivering performance, long life, and reliability.

Part TypeFuel Pressure Regulator
Product LineAeromotive A1000-6 Injected Bypass Regulator
BrandAEROMOTIVE
Package Height2.6
Package Width4.9
Package Length6.7
Weight1.08 PG
Part CategoryPerformance Parts
Inlet Size-6 AN O-ring
Boost/Vacuum Rise Ratio1:01
Pressure Range40-75
Outlet Port Diameter3/8
Outlet QuantityOne
Mounting Bracket IncludedYes
Gauge PortYes
Return Fitting Size-6 AN O-ring
Inlet Port Diameter3/8
Fittings IncludedNo
Inlet QuantityOne
Regulator StyleReturn
Return AttachmentFemale Threads
Regulator FinishClear anodized
Port Quantity3
Outlet Size-6 AN O-ring
Regulator MaterialAluminum
QuantitySold individually
Boost/Vacuum Reference PortYes
RebuildableYes
Inlet AttachmentFemale Threads
Outlet AttachmentFemale Threads
Regulator LocationInline
Pressure Range (Psi)40-75
Part FitmentUniversal
Vendor Part Number13109
Package Qty1
Package TypeEA
