Made in USA
A1000 EFI Bypass Regulator (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13114

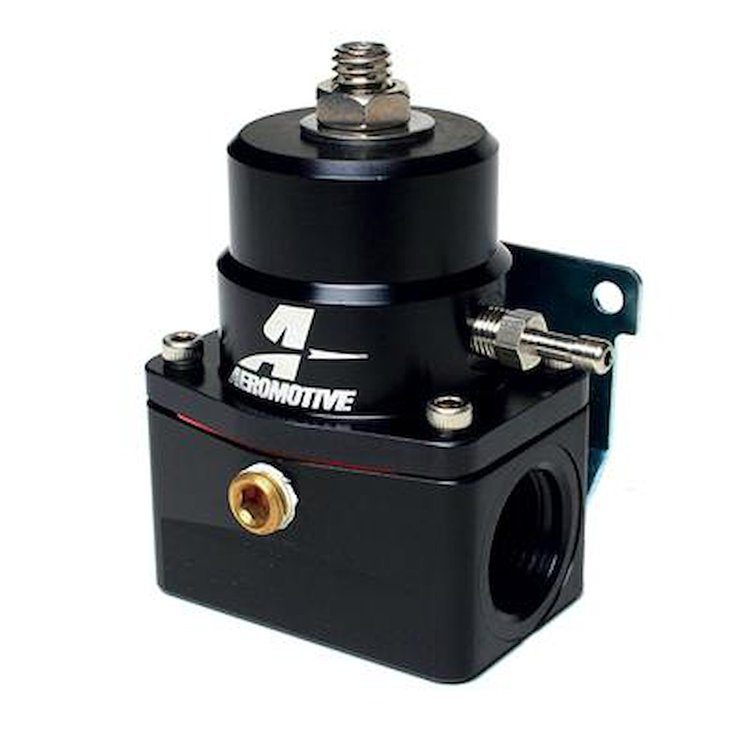

A1000 EFI Bypass Regulator (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port

$29816
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

A1000 Regulators
    A1000 EFI Bypass Regulator
  • (2) -10AN O-Ring Inlet Ports and (1) -6AN O-Ring Return Port
  • Marine

  • Marine EFI Regulator
  • Base pressure adjustable from 40-75 PSI Fuel pressure rises on a 1:1 ratio with boost 1/8' gauge port included Provides (2) ORB-10 inlet ports and one ORB-06 return port.
  • A true performance EFI Regulator designed for medium to high horsepower marine applications. Features Aeromotives high-flow design, superb pressure control and legendary durability. This pressure control regulator has logged more hours than any other performance EFI marine regulator in the world! Base pressure adjustable from 40-75 PSI. Fuel pressure rises on a 1:1 ratio with boost. 1/8' gauge port included. Provides (2) ORB-10 inlet ports and one ORB-06 return port.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Full-Flow Regulators with Consistent Fuel Pressure

    Aeromotive dual-purpose A1000 bypass regulators are compatible with EFI or carbureted systems in street or strip vehicles using gasoline, ethanol, and diesel fuel. With a high-flow design, these durable regulators are available in a variety of adjustable base pressure ranges that deliver excellent pressure control.

Part TypeFuel Pressure Regulator
Product LineAeromotive A1000 Injected Bypass Regulators
BrandAEROMOTIVE
Package Height2.8
Package Width5.6
Package Length5.8
Weight1.15 PG
Part CategoryPerformance Parts
Inlet Size-10 AN O-ring
Boost/Vacuum Rise Ratio1:01
Pressure Range40-75
Outlet Port Diameter3/8
Outlet QuantityOne
Mounting Bracket IncludedYes
Gauge PortYes
Return Fitting Size-6 AN O-ring
Inlet Port Diameter5/8
Fittings IncludedNo
Inlet QuantityOne
Regulator StyleReturn
Return AttachmentFemale Threads
Regulator FinishBlack anodized
Port Quantity3
Outlet Size-10 AN O-ring
Regulator MaterialAluminum
QuantitySold individually
Boost/Vacuum Reference PortYes
RebuildableYes
Inlet AttachmentFemale Threads
Outlet AttachmentFemale Threads
Regulator LocationInline
Pressure Range (Psi)40-75
Part FitmentUniversal
Vendor Part Number13114
Package Qty1
Package TypeEA
