Made in USA

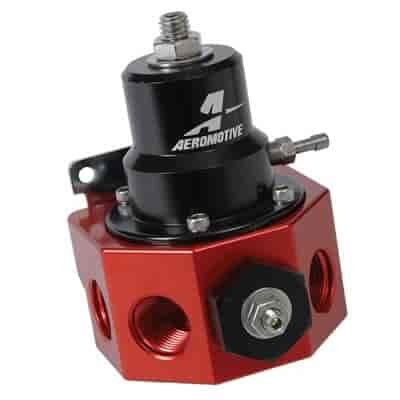

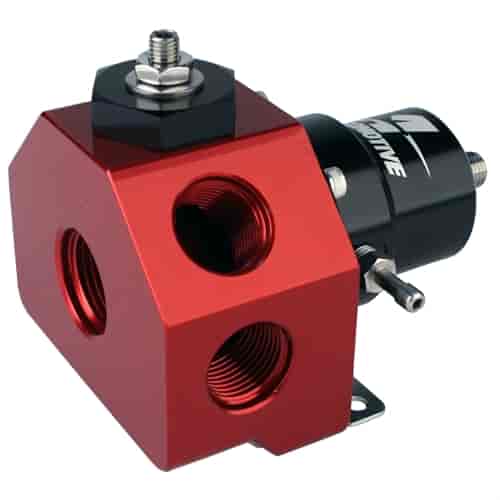

Double Adjustable Carbureted 4-Port Regulator (1) -8AN O-Ring Inlet Port
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-13209

Double Adjustable Carbureted 4-Port Regulator (1) -8AN O-Ring Inlet Port

$34641
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

    Double Adjustable Carbureted 4-Port Regulator
  • (1) -8AN O-Ring Inlet Port
  • (3) -8AN O-Ring Outlet Ports

  • double adjustable bypass 4-port regulator
  • works with single and dual carbureted engines
  • has two independent pressure adjustments: one for idle and one for wide open throttle
  • Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any bypass system. ORB-10 return port. P/N 13209 provides (1) ORB-08 inlet and (3) ORB-08 outlet ports. Can be configured for single or dual carbureted engines and provides superior pressure control and flow when installed before the carburetor or after a fuel log. Also available with a single inlet port for fuel logs. (P/N 13214) provides ORB-10 inlet and return ports.

Precise, accurate, and reliable fuel control unmatched by any other fuel pressure regulator. Set idle pressure separately from high-end settings. No jets, pills, logs, or barrel valves req'd. The easiest to plumb & use, as well as the most accurate method of metering pressure control using a mechanical pump. Ideal for use with Aeromotive mechanical fuel pumps. Fully compatible with alcohol fuels. Type II bright dip anodized finish protects the 6061 T6 aluminum alloy body & cap. Port design provides flexibility for single or dual carbs.

Show More

Features:

  • (1) 08AN O-Ring inlet and (3) 08AN O-Ring outlet ports
  • -10AN O-Ring return port.
  • Down to 3 psi @ Idle. Up to 18 psi @ WOT
  • Can be configured for single or dual carbureted engines and provides superior pressure control and flow when installed before the carburetor or after a fuel log.
  • Also available with a single inlet port for fuel logs.
  • provides ORB-10 inlet and return ports.
  • E85 Compatible
Part TypeFuel Pressure Regulator
Product LineAeromotive Double Adjustable Carbureted 4-Port Regulator
BrandAEROMOTIVE
Package Height4.1
Package Width4.9
Package Length8.6
Weight1.61 PG
Part CategoryPerformance Parts
Regulator FinishRed anodized
Port Quantity4
Outlet Size-8 AN
Inlet Size-8 AN
Regulator MaterialAluminum
Pressure Range3-18
Outlet Port Diameter1/2
Outlet QuantityThree
QuantitySold individually
Boost/Vacuum Reference PortYes
RebuildableNo
Inlet AttachmentFemale Threads
Mounting Bracket IncludedYes
Gauge PortNo
Return Fitting Size-10 AN
Outlet AttachmentFemale Threads
Regulator LocationInline
Inlet Port Diameter1/2
Fittings IncludedNo
Inlet QuantityOne
Part FitmentUniversal
Regulator StyleReturn
Return AttachmentMale threads
Vendor Part Number13209
Package Qty1
Package TypeEA
