Dual Rail EFI Return - Phantom 200 and Installation Kit
• 300-700+ HP


  Includes:
• (1) 027-18689 Phantom 200
• (1) 027-12321 Filter 10 micron Paper
• (1) 027-12305 Filter Bracket
• (1) 027-13131 Regulator
• (1) 027-16307 Fuel Pump Wiring Kit
• (6) 027-15606 AN-06 ORB to AN-06 flare
• (2) 027-15609 AN-10 ORB to AN-06 flare
• (1) 027-15633 0-100 PSI Pressure Gauge
• (1) 027-15672 Y-Block, AN-06
• Fuel System Phantom Kit
• Includes all main fuel system components required, including 200lph pump. Creates a proper RETURN-STYLE EFI fuel system for engines with dual billet fuel rails. Does not include fuel line or hose ends.

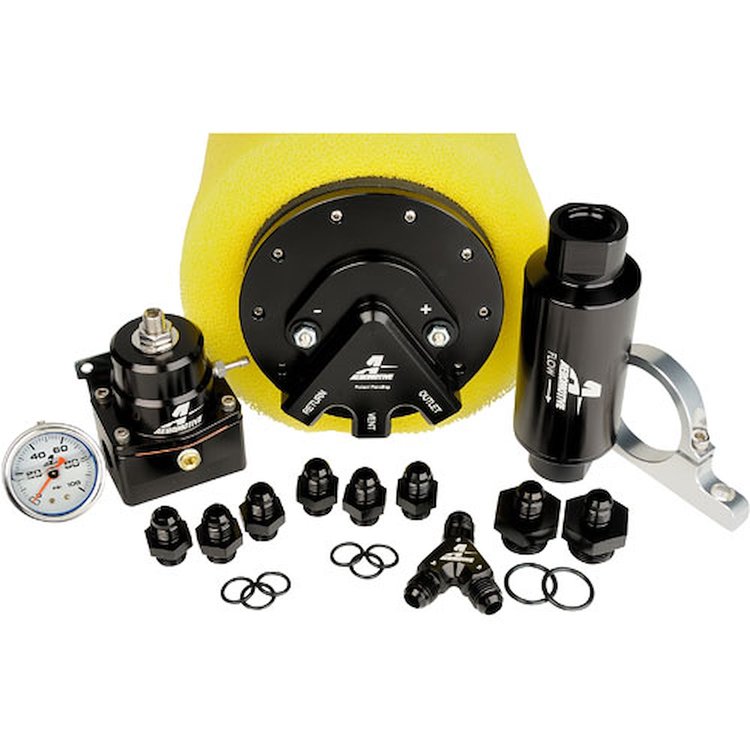

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200LPH fuel pump. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06 Y-Block.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
