Vehicle Info NeededAEROMOTIVEPART NUMBER: 027-18075

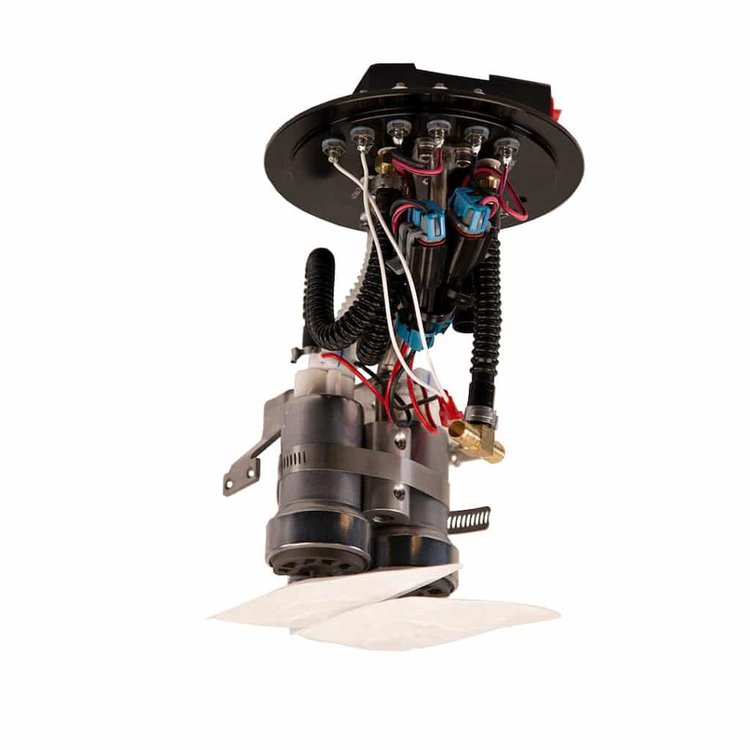

Direct Drop-In Dual Phantom In-Tank Fuel Pump for 2016-2022 Chevrolet Camaro and Cadillac ATS and CTS [2x 450 LPH]
$1,22384
Ships on Nov 02, 2026
Lowest Price GuaranteeDirect Drop-In Dual Phantom In-Tank Fuel Pump2016-2022 Chevrolet Camaro and Cadillac ATS and CTS Two 450 LPH Pumps Gasoline Compatible Sold Individually
Feed a modified 2016-2022 Chevrolet Camaro and Cadillac ATS and CTS with this Aeromotive direct drop-in in-tank fuel pump. Aeromotive Phantom systems put a high flow turbine pump inside the factory tank with a baffled reservoir that keeps the pickup covered under hard acceleration, cornering and low fuel levels.
Aeromotive 18075 Direct Drop-In In-Tank Fuel Pump Features:
- Direct drop-in fit for 2016-2022 Chevrolet Camaro and Cadillac ATS and CTS
- Two 450 LPH Pumps
- 13 amps per pump
- For gasoline
- Requires AN fuel lines and high flow filtration
- Sold individually
Part TypeElectric Fuel Pump
BrandAEROMOTIVE
Package Height9.5
Package Width9.5
Package Length12.5
Weight8.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Internal Or ExternalInternal
Pulse Width Modulation CompatibleNo
Strainer IncludedYes
Fuel TypeGas
Filter IncludedNo
Mounting Bracket IncludedYes
Terminal GenderMale
Voltage12 v
Terminal Quantity4
Fuel Sending Unit IncludedNo
Seal And Lock Ring IncludedYes
Outlet Outside Diameter-6 AN x 2
Integrated ControllerNo
Maximum Current Draw13 amp each
Gasket Or Seal IncludedYes
Terminal TypeThreaded Stud
QuantitySold Individually
Mounting Hardware IncludedYes
SeriesPhantom
Pump DesignTurbine Impeller
Fuel Delivery TypeCarburation & Fuel Injection
Outlet TypeFemale Thread
Part FitmentDirect Fit
Negative GroundYes
Maximum Pressure40 psi
Vendor Part Number18075
Package Qty1
Package TypeEA
