Made in USA

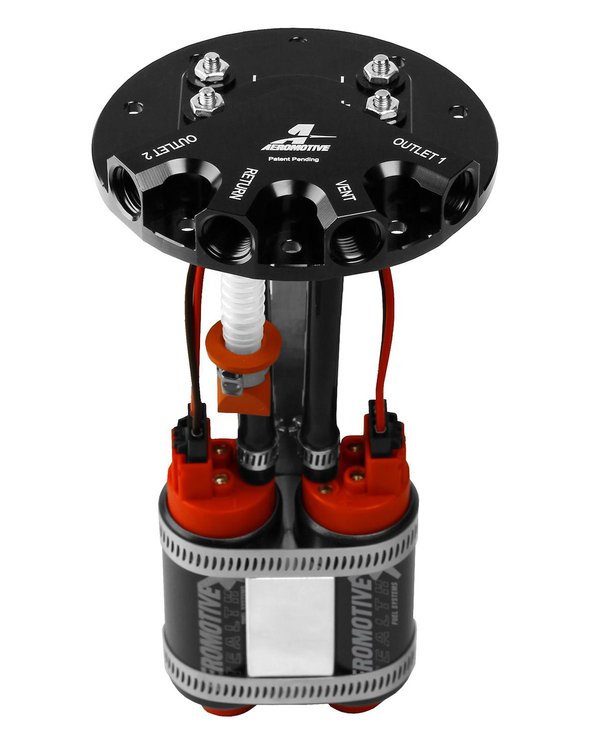

Dual 340 LPH Phantom Series In-Tank Fuel Pump Kit [Universal, 6-10 in. Tank Depth]
InfoVehicle Info Needed
AEROMOTIVEPART NUMBER: 027-18309

Dual 340 LPH Phantom Series In-Tank Fuel Pump Kit [Universal, 6-10 in. Tank Depth]

$95619
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Dual Phantom Stealth Fuel System
Dual 340 LPH Phantom Series In-Tank Fuel Pump Kit
  • Universal Fit, 6-10 in. Tank Depth
  • Two 340 LPH Pumps
  • 2000 HP Carbureted on Gas, 1400 HP on E85
  • 1700 HP EFI on Gas, 1190 HP on E85
  • Dual -6 AN Female Outlets
  • Sold as a Kit

    Cutting a hole in the tank is the part nobody enjoys, which is why the Phantom baffle system exists. It conforms to the tank instead of the other way round, and the dual-pump version doubles the fuel on tap without doubling the fabrication work.

    Aeromotive 18309 Dual 340 LPH Phantom Series In-Tank Fuel Pump Kit Features:

    • Universal in-tank installation for fuel cells and stock tanks from 6 in. to 10 in. deep.
    • Two 340 LPH turbine impeller pumps, internally mounted.
    • Supports 2000 HP carbureted on gas and 1400 HP on E85.
    • Supports 1700 HP EFI on gas and 1190 HP on E85.
    • 40 psi maximum pressure, 13 A maximum current draw per pump.
    • Twin -6 AN female threaded outlets.

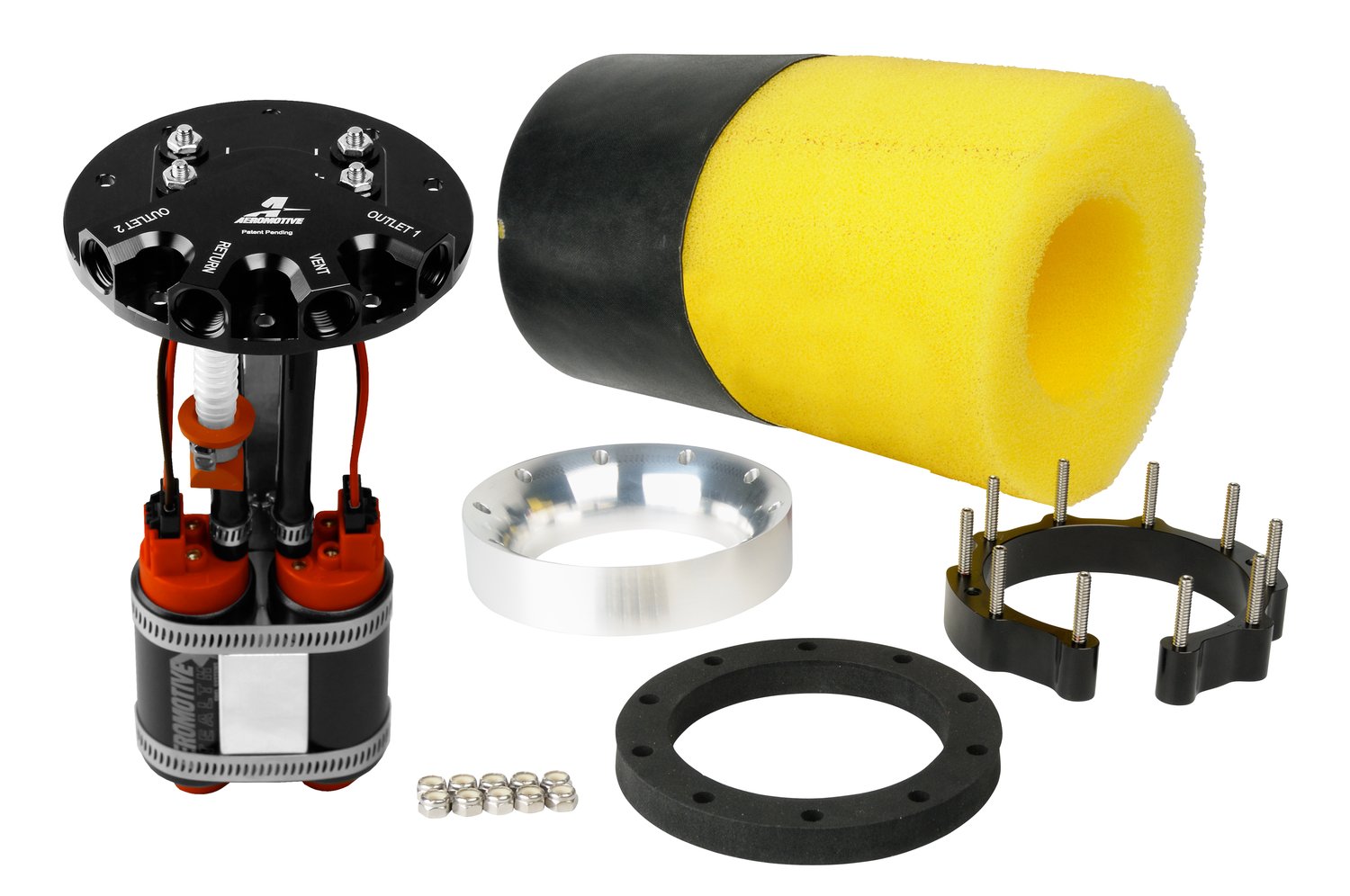

    • Mounting bracket, hardware, strainers, seal and lock ring included.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • In-Tank Fuel Pump Modules Capable of Supporting 300 to 2600 Horsepower

      Aeromotive in-tank fuel pump modules are easy to install in either original fuel tanks or fuel cells and are available to provide the fuel required for engines from street to all-out race.

    Part TypeElectric Fuel Pump Kit
    Product LineAeromotive Phantom Stealth Fuel System
    BrandAEROMOTIVE
    Package Height8.3
    Package Width8.6
    Package Length17.7
    Weight5.92 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedNo
    Sending Unit IncludedNo
    Universal Or Specific FitUniversal
    Gasket Or Seal IncludedYes
    Regulator IncludedNo
    Outlet Quantity2
    QuantitySold as a Kit
    Mounting Hardware IncludedYes
    Mounting TypeInternal
    Strainer IncludedYes
    Maximum Flow Rating340 lph x 2
    Fuel TypeGas
    Mounting Bracket IncludedYes
    Fuel Delivery TypeCarburation & Fuel Injection
    Outlet TypeFemale Thread
    Part FitmentUniversal
    Fuel Filter IncludedNo
    Outlet Outside Diameter-6 AN
    Maximum Pressure40 psi
    Vendor Part Number18309
    Package Qty1
    Package TypeEA
