![Performance-Fit Aluminum Radiator [Early Ford]](https://www.jegs.com/images/mini_750/900/923/923-80101fnp.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford Applications

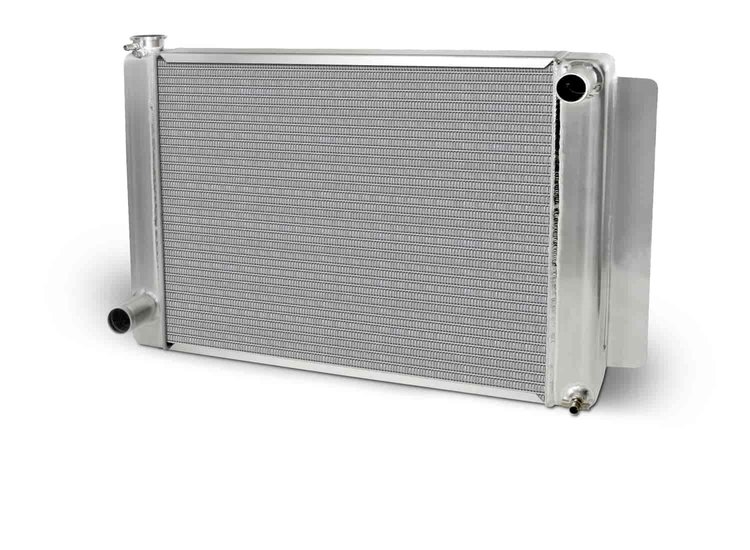

Performance-Fit Aluminum RadiatorEarly Ford Overall Size: 27 1/2 W x 18 3/4 H in. 2-Row Core Single Pass
Features
- Performance-Fit radiators are designed to be easily adapted to many applications and are ideal for the street or the strip
- TIG-welded all-aluminum construction uses no epoxy
- Built-in fin covers the top and bottom core plates
- Fully pressure-tested for quality control
- 2 in. wide mounting flange on each side
- Lightweight at 14.200 lbs.
- Includes drain petcock included
Note: Performance-Fit radiators are NOT a direct fit and may require some modifications or fabricating for the correct fit. Always measure your application.
Maximum Cooling Performance Radiators
AFCO offers a great fit and unmatched performance in these Universal Performance-Fit Radiators. Each has an optimized fin count ratio to maximize thermal efficiency. Plus, all AFCO Radiators feature an all-aluminum, 100 percent TIG-welded design with a furnace-brazed sealed core, eliminating the need for epoxy.
Part TypeRadiator
Product LineAFCO Universal Performance-Fit Radiators
BrandAFCO COOLING
Package Height7.5
Package Width25.0
Package Length38.5
Weight22.5 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20 in (508 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationUpper passenger side
Inlet Size (In.)1 1/2
Core Height18.5 in (469.9 mm)
Core Thickness2.25 in (57.15 mm)
Core Width22.375 in (568.325 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width27.5 in (698.5 mm)
Tube Size1 in (25.4 mm)
Radiator FinishNatural
Inlet Quantity1
Fan IncludedNo
Transmission CoolerNo
Radiator StyleCrossflow
Vendor Part Number80101FNP
Package Qty1
Package TypeEA
