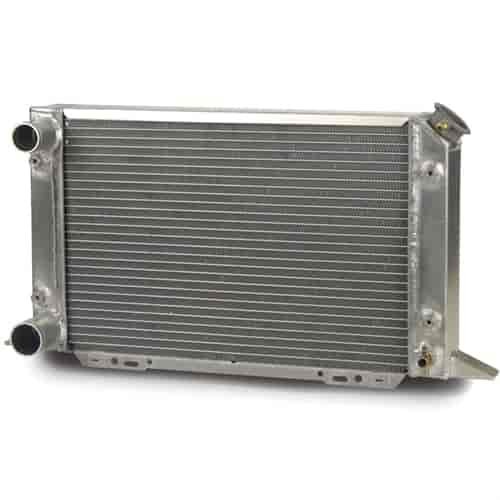

Scirocco-Style Drag Race Radiator
InfoVehicle Info Needed
AFCO COOLINGPART NUMBER: 923-80105N

Scirocco-Style Drag Race Radiator

$48499
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Super-Duty Coolant/Antifreeze 1 Gallon

BE COOL RADIATORS

Super-Duty Coolant/Antifreeze 1 Gallon

Part Number : 134-25001
$4599
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599
Purple Ice Coolant 12oz. Bottle

ROYAL PURPLE

Purple Ice Coolant 12oz. Bottle

Part Number : 831-01600
$764$8.99
You Save$1.35
Scirocco-Style Radiator Fan & Shroud Combo

AFCO COOLING

Scirocco-Style Radiator Fan & Shroud Combo

Part Number : 923-80104NFAN
$35799

Double Pass Radiators
    Scirocco-Style Drag Race Radiator
  • Universal
  • Width:21-1/2"
  • Height: 12-5/8"
  • Thickness: 3"
  • Inlet: 1-1/2" Left
  • Outlet: 1-3/4" Left
  • Filler Neck: Right

    AFCO offers several versions of the popular “Sirocco-style” radiator. These radiators are 12-5/8” high x 21-1/2” wide and are available in configurations for Chevy, Ford, and Chrysler applications. The all-aluminum furnace brazed core design (no epoxy) provides maximum cooling protection for the most demanding door-slammers. These radiators have 100% TIG-welded tanks and brackets. The Lightweight (LWN) versions remove 4 pounds from the nose of the car while keeping the same cooling performance. #80104NFAN is a fan/shroud kit that bolts up perfectly to the 1/4” bungs. N models have 2 rows of 1” tubes and the LWN models have 1 row of 1.5” tubes.• Double pass for maximum cooling in a compact, lightweight package.• Lightweight versions remove 4 lbs. from the nose of the car!• Sturdy TIG-welded 2” “foot” mounts.• Four 1/4” - 20 mounting bungs.• Stainless hardware & drain included.• No epoxy construction.• 100% TIG-welded.

    Maximum Cooling Performance

    AFCO Drag Racing Aluminum Radiators offer great fit and performance for even the most demanding racers. Each of these Scirocco-Style radiators is a dual-pass design and has an optimized fin count ratio for maximum cooling efficiency. All AFCO radiators feature TIG-welded tanks and brackets, as well as a furnace-brazed, sealed core without the use of epoxy. Every radiator is thoroughly tested before shipping to ensure you get impeccable quality parts. Stainless steel hardware and drain plug are included.

Part TypeRadiator
Product LineAFCO Drag Racing Aluminum Radiators
BrandAFCO COOLING
Package Height7.0
Package Width23.0
Package Length32.0
Weight15.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number80105N
Package Qty1
Package TypeEA
