Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-80107N

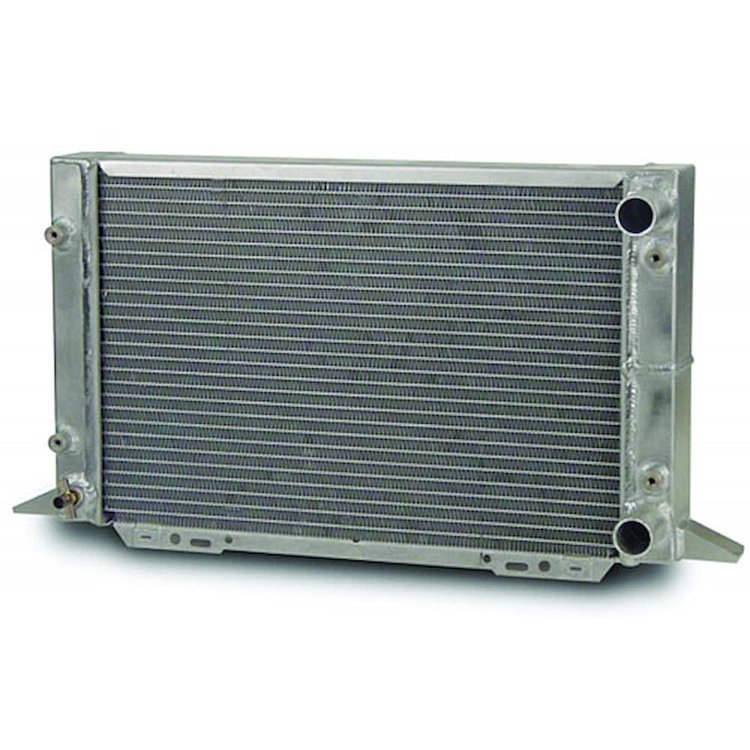

Scirocco-Style Drag Race Radiator
$49999
Ships on Sep 23, 2026
Lowest Price GuaranteeDouble Pass Radiators
- Scirocco-Style Drag Race Radiator
- Universal
- Width:21-1/2"
- Height: 12-5/8"
- Thickness: 3"
- Inlet: 1-1/4" Right
- Outlet: 1-1/4" Right
- Filler Neck: None
AFCO offers several versions of the popular “Sirocco-style” radiator. These radiators are 12-5/8” high x 21-1/2” wide and are available in configurations for Chevy, Ford, and Chrysler applications. The all-aluminum furnace brazed core design (no epoxy) provides maximum cooling protection for the most demanding door-slammers. These radiators have 100% TIG-welded tanks and brackets. The Lightweight (LWN) versions remove 4 pounds from the nose of the car while keeping the same cooling performance. #80104NFAN is a fan/shroud kit that bolts up perfectly to the 1/4” bungs. N models have 2 rows of 1” tubes and the LWN models have 1 row of 1.5” tubes.• Double pass for maximum cooling in a compact, lightweight package.• Lightweight versions remove 4 lbs. from the nose of the car!• Sturdy TIG-welded 2” “foot” mounts.• Four 1/4” - 20 mounting bungs.• Stainless hardware & drain included.• No epoxy construction.• 100% TIG-welded.
Part TypeRadiator
BrandAFCO COOLING
Package Height6.5
Package Width15.6
Package Length32.9
Weight13.945 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part Number80107N
Package Qty1
Package TypeEA
