![Direct-Fit Satin Aluminum Radiator [1957 Chevy Tri-Five]](https://www.jegs.com/images/mini_750/900/923/923-80170-s-na-n.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-80170-S-NA-N

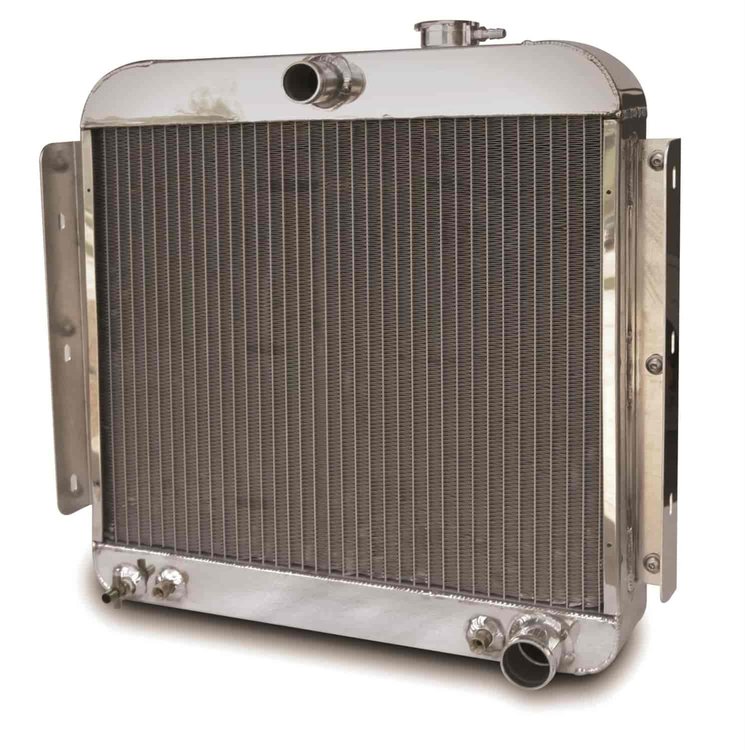

Direct-Fit Satin Aluminum Radiator [1957 Chevy Tri-Five]
$91499
Ships on 09/14/2026
Lowest Price GuaranteeGM
Direct-Fit Aluminum Radiator1957 Chevy Tri-Five 20 5/8 in. W x 21 7/8 in. H Built-In Transmission Cooler Satin Radiator
Features
- Dual 1 1/4-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Part TypeRadiator
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness3.5 in (88.9 mm)
Overall Height21.875 in (555.6 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationCenter
Inlet Size (In.)1 1/2
Core Height17.13 in (435.102 mm)
Core Thickness2.69 in (68.326 mm)
Core Width20 in (508 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width20.625 in (523.9 mm)
Tube Size1.25 in (31.8 mm)
Radiator FinishSatin
Inlet Quantity1
Fan IncludedNo
Transmission CoolerNo
Part FitmentDirect Fit
Radiator StyleDownflow
Vendor Part Number80170-S-NA-N
Package Qty1
Package TypeEA
