AFCO COOLINGPART NUMBER: 923-80251-P-NA-Y

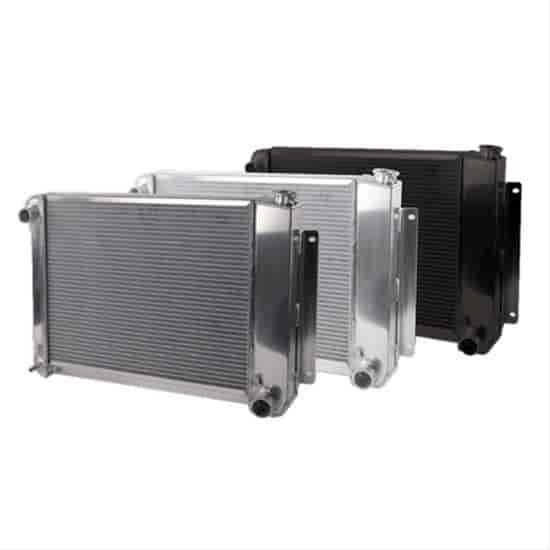

Direct-Fit Polished Aluminum Radiator [1967-1969 Chevy Camaro Small Block/Big Block V8]
$1,11899
GM
Direct-Fit Aluminum Radiator1967-1969 Chevy Camaro Small Block/Big Block Chevy Engine 28 in. W x 18 3/8 in. H Built-In Transmission Cooler Polished Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
High-Performance Cooling Efficiency Radiators
AFCO Direct-Fit Radiators offers a great fit and unmatched performance that requires no modification in a bolt-in package. Each radiator features a dual 1-inch row core with an optimized fin count ratio to maximize cooling efficiency. As a bonus, AFCO Radiators are all manufactured with a furnace-brazed sealed Core that uses absolutely zero epoxies. Fully pressure tested before shipping for quality you can count on at the street or the track.
Part TypeRadiator
Product LineAFCO Direct-Fit Radiators
BrandAFCO COOLING
Package Height7.0
Package Width24.0
Package Length38.0
Weight23.18 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18.375 in (466.7 mm)
Radiator Cap IncludedNo
Outlet Quantity1
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Width22.75 in (577.85 mm)
Row Quantity2
Overall Width28 in (711.2 mm)
Tube Size1 in (25.4 mm)
Radiator FinishPolished
Inlet Quantity1
Transmission CoolerYes
Radiator StyleCrossflow
Outlet Size1.75 in (44.5 mm)
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Core Height18.375 in (466.725 mm)
Core Thickness2.25 in (57.15 mm)
Trans Cooler Line Connection1/4 in. NPT
Outlet LocationLower passenger side
Fan IncludedNo
Part FitmentDirect Fit
Vendor Part Number80251-P-NA-Y
Package Qty1
Package TypeEA
