![Direct-Fit Polished Aluminum Radiator [1966-1967 Chevy Chevelle] Small Block/Big Block V8](https://www.jegs.com/images/mini_750/900/923/923-80252-p-na-n.jpg)
Product Discontinued
AFCO COOLINGPART NUMBER: 923-80252-P-NA-N

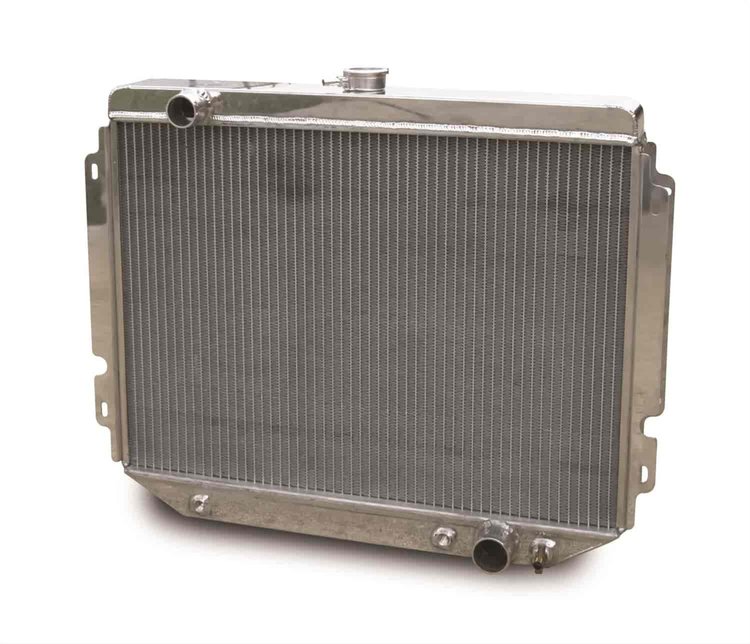

Direct-Fit Polished Aluminum Radiator [1966-1967 Chevy Chevelle] Small Block/Big Block V8
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
Direct-Fit Aluminum Radiator1966-1967 Chevy Chevelle Small Block/Big Block Chevy Engine 25 in. W x 21 3/8 in. H Polished Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
High-Performance Cooling Efficiency Radiators
AFCO Direct-Fit Radiators offers a great fit and unmatched performance that requires no modification in a bolt-in package. Each radiator features a dual 1-inch row core with an optimized fin count ratio to maximize cooling efficiency. As a bonus, AFCO Radiators are all manufactured with a furnace-brazed sealed Core that uses absolutely zero epoxies. Fully pressure tested before shipping for quality you can count on at the street or the track.
Part TypeRadiator
Product LineAFCO Direct-Fit Radiators
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness6 in (152.4 mm)
Overall Height21.375 in (542.9 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Height16.125 in (409.575 mm)
Core Thickness2.25 in (57.15 mm)
Core Width24.625 in (625.475 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width25 in (635 mm)
Tube Size1 in (25.4 mm)
Radiator FinishPolished
Inlet Quantity1
Fan IncludedNo
Transmission CoolerNo
Part FitmentDirect Fit
Radiator StyleDownflow
Vendor Part Number80252-P-NA-N
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
