![Direct-Fit Satin Aluminum Radiator [1966-1967 Chevy Chevelle] Small Block/Big Block V8](https://www.jegs.com/images/mini_750/900/923/923-80252-s-na-n.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-80252-S-NA-N

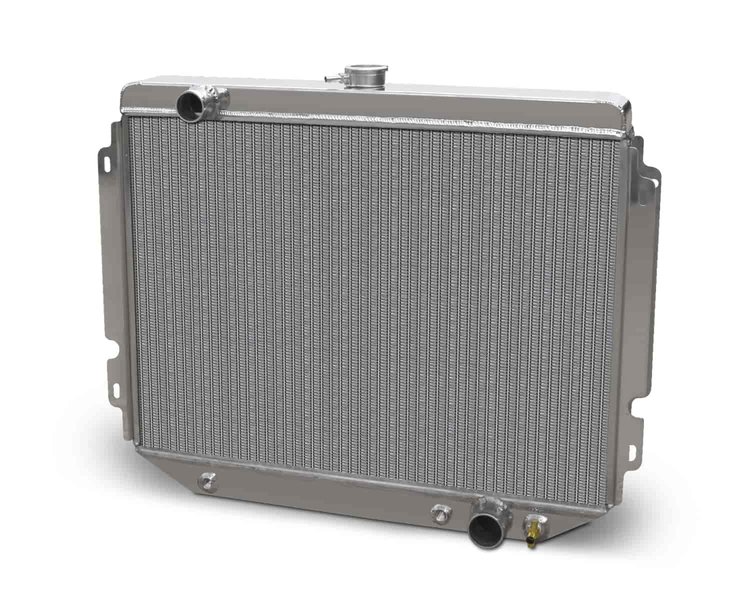

Direct-Fit Satin Aluminum Radiator [1966-1967 Chevy Chevelle] Small Block/Big Block V8
$76399
Ships on 09/16/2026
Lowest Price GuaranteeGM
Direct-Fit Aluminum Radiator1966-1967 Chevy Chevelle Small Block/Big Block Chevy Engine 25 in. W x 21 3/8 in. H Satin Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Part TypeRadiator
BrandAFCO COOLING
Package Width26.15
Weight26.15 PG
Part CategoryPerformance Parts
Overall Thickness6 in (152.4 mm)
Overall Height21.375 in (542.9 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Height16.125 in (409.575 mm)
Core Thickness2.25 in (57.15 mm)
Core Width24.625 in (625.475 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width25 in (635 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Fan IncludedNo
Transmission CoolerNo
Part FitmentDirect Fit
Radiator StyleDownflow
Vendor Part Number80252-S-NA-N
Package Qty1
Package TypeEA
