![Direct-Fit Satin Aluminum Radiator [1968-1977 GM A-Body/B-Body]](https://www.jegs.com/images/mini_750/900/923/923-80253-s-na-y.jpg)
Product Discontinued
AFCO COOLINGPART NUMBER: 923-80253-S-NA-Y

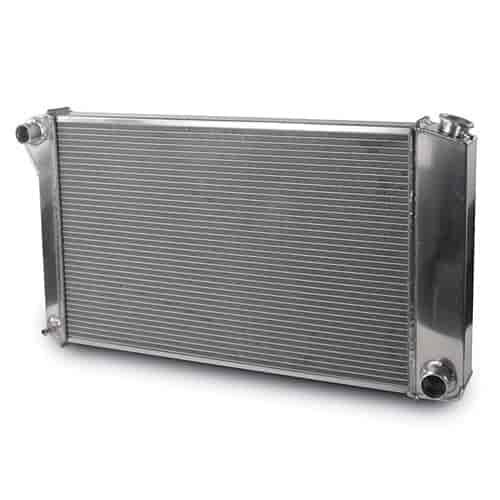

Direct-Fit Satin Aluminum Radiator [1968-1977 GM A-Body/B-Body]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
Direct-Fit Aluminum Radiator1968-1977 GM A-Body, B-Body 34 1/4 in. W x 18 3/4 in. H Built-In Transmission Cooler Satin Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Fitment
- Chevy
- 1968-1977 Chevelle
- 1970-1977 Monet Carlo
- 1971-1979 Belair, Biscayne, Impala
- Buick
- 1969-1973 Skylark, Apollo
- 1973-1977 Regal, Grand Sport
- Oldsmobile
- 1966-1977 Cutlass, 442, Hurst Olds
- Pontiac
- 1968-1974 GTO
- 1968-1977 Lemans
- 1968-1973 Tempest
- 1972-1977 Grand Prix
High-Performance Cooling Efficiency Radiators
AFCO Direct-Fit Radiators offers a great fit and unmatched performance that requires no modification in a bolt-in package. Each radiator features a dual 1-inch row core with an optimized fin count ratio to maximize cooling efficiency. As a bonus, AFCO Radiators are all manufactured with a furnace-brazed sealed Core that uses absolutely zero epoxies. Fully pressure tested before shipping for quality you can count on at the street or the track.
Part TypeRadiator
Product LineAFCO Direct-Fit Radiators
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height17.75 in (450.9 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Trans Cooler Line Connection1/4 in. NPT
Row Quantity2
Outlet LocationLower passenger side
Overall Width34.25 in (870 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part Number80253-S-NA-Y
Package Qty1
Package TypeEA
