![Direct-Fit Satin Aluminum Radiator [1978-1988 GM A-Body, G-Body, 1980-1986 Impala/Caprice]](https://www.jegs.com/images/mini_750/900/923/923-80258-s-na-y.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-80258-S-NA-Y

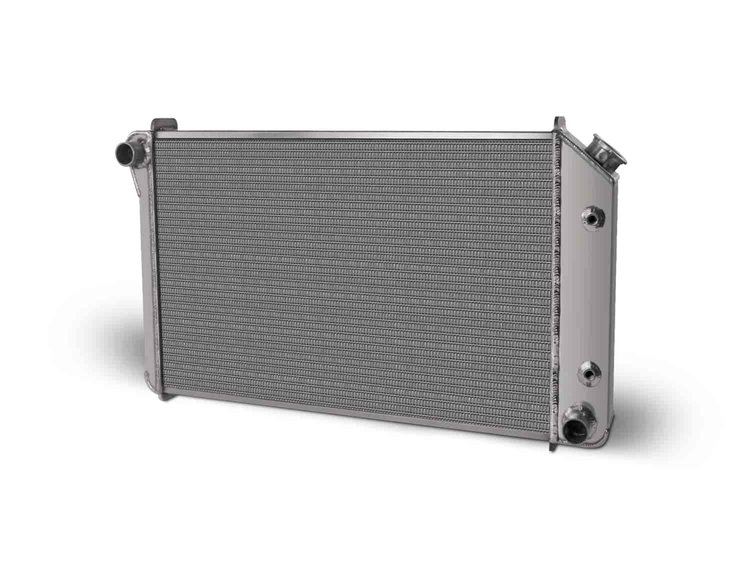

Direct-Fit Satin Aluminum Radiator [1978-1988 GM A-Body, G-Body, 1980-1986 Impala/Caprice]
$79799
Ships on 09/16/2026
Lowest Price GuaranteeGM
Direct-Fit Aluminum Radiator1978-1988 GM A-Body, G-Body, 1980-1986 Impala/Caprice 30 1/2 in. W x 17 1/4 in. H Built-In Transmission Cooler Satin Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Fitment
- Chevy
- 1978-1988 Monte Carlo V8/SS
- 1980-1986 Impala, Caprice
- Buick
- 1978-1987 Regal, Grand National, GNX
- Oldsmobile
- 1978-1988 Cutlass, 442, Hurst Olds
- Pontiac
- 1978-1987 Grand Prix
- 1978-1981 Lemans V8
Part TypeRadiator
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness6 in (152.4 mm)
Overall Height17.25 in (438.2 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold as a kit
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Core Height17.25 in (438.15 mm)
Core Thickness2.25 in (57.15 mm)
Trans Cooler Line Connection1/4 in. NPT
Core Width27.438 in (696.925 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width30.5 in (774.7 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleCrossflow
Package Qty1
Package TypeEA
