![Direct-Fit Satin Aluminum Radiator with Dual Fans and Shroud [1962-1967 Chevy II/Nova]](https://www.jegs.com/images/mini_750/900/923/923-80287-s-ds-n.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-80287-S-DS-N

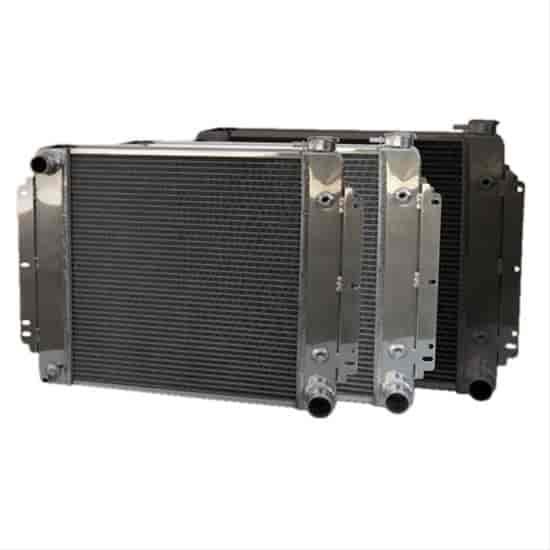

Direct-Fit Satin Aluminum Radiator with Dual Fans and Shroud [1962-1967 Chevy II/Nova]
$1,14099
Ships on 11/25/2026
Lowest Price GuaranteeItems You Need
![Microfiber Towels, Oversized [16 in. x 16 in.]](https://www.jegs.com/images/mini_200/500/555/555-80190.jpg)
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off]](https://www.jegs.com/images/mini_200/500/555/555-10570.jpg)
JEGS
Part Number : 555-10570
$6599$71.29
You Save$5.30
![Heavy-Duty Nitrile Gloves [7 mils Thick, Large]](https://www.jegs.com/images/mini_200/500/555/555-1124.jpg)
JEGS
Part Number : 555-16056
$414$4.99
You Save$0.85
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Brake and Parts Cleaner [14 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/500/555/555-72312.jpg)
![Ice Water Racing Coolant [1 Gallon, Non-Glycol]](https://www.jegs.com/images/mini_200/500/555/555-72314.jpg)
![Racing Coolant and Antifreeze with LP-3 [1 Gallon]](https://www.jegs.com/images/mini_200/500/555/555-72316.jpg)
![Racing Super Coolant Additive [16 oz.]](https://www.jegs.com/images/mini_200/500/555/555-72324.jpg)
![3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80077.jpg)
![Round Magnetic Parts Tray [5 1/2 in. Round]](https://www.jegs.com/images/mini_200/500/555/555-80080.jpg)
GM
Direct-Fit Aluminum Radiator with Dual Fans1962-1967 Chevy II (Nova) 24 1/2 in. Core Support Crossflow 23 1/4 in. W x 20 in. H Satin Radiator and Shroud Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
High-Performance Cooling Efficiency Radiators
AFCO Direct-Fit Radiators offers a great fit and unmatched performance that requires no modification in a bolt-in package. Each radiator features a dual 1-inch row core with an optimized fin count ratio to maximize cooling efficiency. As a bonus, AFCO Radiators are all manufactured with a furnace-brazed sealed Core that uses absolutely zero epoxies. Fully pressure tested before shipping for quality you can count on at the street or the track.
Part TypeRadiator
Product LineAFCO Direct-Fit Radiators
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness6 in (152.4 mm)
Overall Height20 in (508 mm)
Radiator Cap IncludedNo
Shroud MaterialAluminum
Outlet Quantity1
Inlet LocationUpper driver side
Inlet Size (In.)1 1/2
Amp Draw12.00 amps
Core Width20.25 in (514.35 mm)
Row Quantity2
Overall Width23.25 in (590.6 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Transmission CoolerNo
Maximum Fan Cfm1,604 cfm
Shroud ColorSatin
Radiator StyleCrossflow
Blade MaterialPlastic
Outlet Size1.75 in (44.5 mm)
Fan QuantityDual
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold as a kit
Core Height19.5 in (495.3 mm)
Core Thickness3 in (76.2 mm)
Fan Diameter10 in (254 mm)
Blade ColorBlack
Outlet LocationLower passenger side
Fan IncludedYes
Part FitmentDirect Fit
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
