![Direct-Fit Satin Aluminum Radiator [2005-2009 Ford Mustang GT]](https://www.jegs.com/images/mini_750/900/923/923-81281n.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-81281N

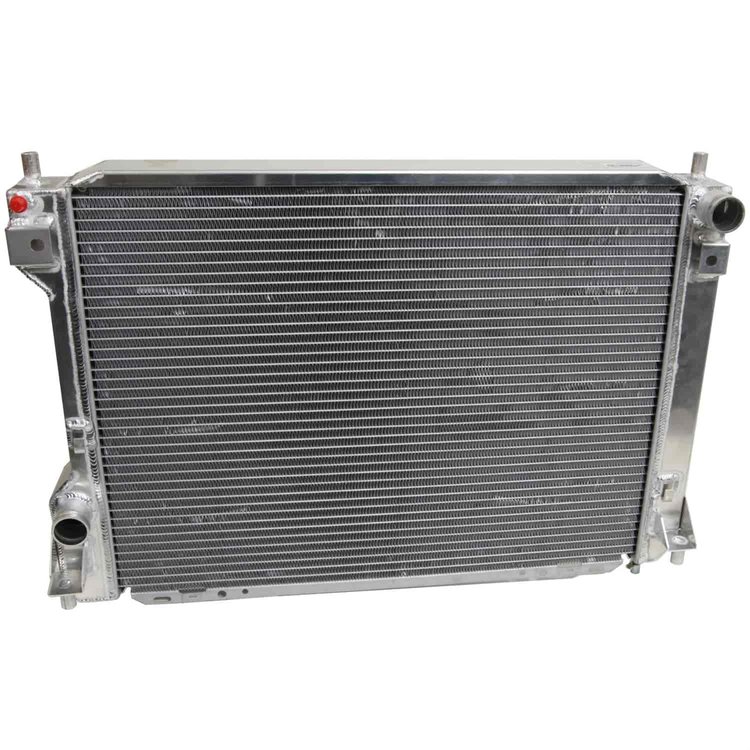

Direct-Fit Satin Aluminum Radiator [2005-2009 Ford Mustang GT]
$74199
Ships on 09/14/2026
Lowest Price GuaranteeFord
Direct-Fit Aluminum Radiator2005-2009 Ford Mustang GT Mounts in Factory Location Mounting for Condenser Accepts Factory Fan Shroud 29 in. W x 18 1/4 in. H Satin Finish
Features
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Part TypeRadiator
BrandAFCO COOLING
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18.25 in (463.6 mm)
Outlet Size1.5 in (38.1 mm)
Radiator Cap IncludedNo
Radiator MaterialAluminum
Drain Valve IncludedYes
Outlet Quantity1
QuantitySold individually
Inlet LocationUpper passenger side
Inlet Size (In.)1 1/2
Core Height17.5 in (444.5 mm)
Core Thickness3 in (76.2 mm)
Core Width26 in (660.4 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width29 in (736.6 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Fan IncludedNo
Transmission CoolerNo
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part Number81281N
Package Qty1
Package TypeEA
