![Direct-Fit LS Swap Satin Aluminum Radiator [1966-1967 Chevy Chevelle]](https://www.jegs.com/images/mini_750/900/923/923-84252-s-na-y.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-84252-S-NA-Y

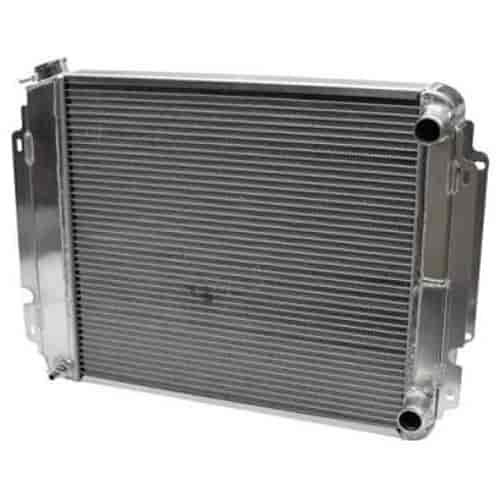

Direct-Fit LS Swap Satin Aluminum Radiator [1966-1967 Chevy Chevelle]
$89999
Ships on 09/15/2026
Lowest Price GuaranteeGM
Direct-Fit Aluminum Radiator1966-1967 Chevy Chevelle LS Engine Swap 25 1/4 in. W x 19 1/2 in. H Built-In Transmission Cooler Satin Finish
Features
- Designed for easy connections when swapping a GM LS-series engine
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Dual-pass configuration for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Part TypeRadiator
BrandAFCO COOLING
Package Height7.5
Package Width23.5
Package Length32.5
Weight22.6 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height19.5 in (495.3 mm)
Radiator Cap IncludedNo
Outlet Quantity1
Inlet LocationUpper passenger side
Inlet Size (In.)1 3/8
Core Width20.75 in (527.05 mm)
Row Quantity2
Overall Width25.25 in (641.4 mm)
Tube Size1 in (25.4 mm)
Radiator FinishSatin
Inlet Quantity1
Transmission CoolerYes
Radiator StyleCrossflow
Outlet Size1.375 in (34.9 mm)
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Core Height19.5 in (495.3 mm)
Core Thickness2.25 in (57.15 mm)
Trans Cooler Line Connection1/4 in. NPT
Outlet LocationLower passenger side
Fan IncludedNo
Part FitmentDirect Fit
Vendor Part Number84252-S-NA-Y
Package Qty1
Package TypeEA
