![Direct-Fit LS Swap Black Aluminum Radiator with Dual Fans and Shroud [1962-1967 Chevy II/Nova]](https://www.jegs.com/images/mini_750/900/923/923-84287-b-db-y.jpg)
Vehicle Info NeededAFCO COOLINGPART NUMBER: 923-84287-B-DB-Y

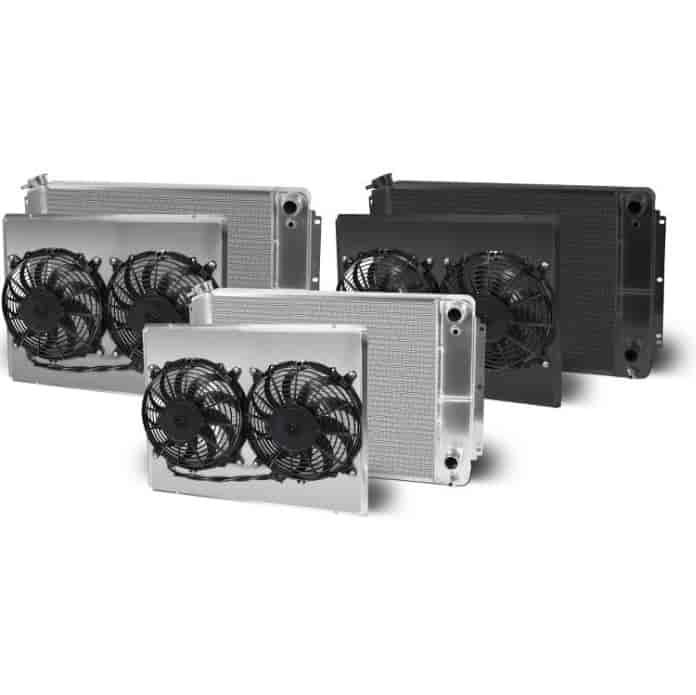

Direct-Fit LS Swap Black Aluminum Radiator with Dual Fans and Shroud [1962-1967 Chevy II/Nova]
$1,49999
Ships on 09/16/2026
Lowest Price GuaranteeGM
Direct-Fit Aluminum Radiator with Dual Fans1962-1967 Chevy II (Nova) LS Engine Swap 24 1/2 in. Core Support Crossflow 23 1/4 in. W x 20 in. H Built-In Transmission Cooler Black Radiator and Shroud Finish
Features
- Designed for easy connections when swapping a GM LS-series engine
- Dual one-inch diameter tubes with optimized fin count ratio for superior cooling
- Dual-pass configuration for superior cooling
- Completely pressure-tested for outstanding quality control
- All-aluminum construction uses absolutely no epoxy
- Billet filler neck with a threaded high-capacity overflow tube
- TIG-welded precision laser-cut tanks
Part TypeRadiator
BrandAFCO COOLING
Package Height5.0
Package Width22.0
Package Length25.0
Weight25.0 PG
Part CategoryPerformance Parts
Overall Thickness6 in (152.4 mm)
Overall Height20.125 in (511.2 mm)
Radiator Cap IncludedNo
Shroud MaterialAluminum
Outlet Quantity1
Inlet LocationUpper passenger side
Inlet Size (In.)1 3/8
Amp Draw12.00 amps
Core Width20.25 in (514.35 mm)
Row Quantity2
Overall Width22.25 in (565.2 mm)
Tube Size1 in (25.4 mm)
Radiator FinishBlack
Inlet Quantity1
Transmission CoolerYes
Maximum Fan Cfm1,604 cfm
Shroud ColorBlack
Radiator StyleCrossflow
Blade MaterialPlastic
Outlet Size1.375 in (34.9 mm)
Fan QuantityDual
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold as a kit
Core Height18 in (457.2 mm)
Core Thickness3 in (76.2 mm)
Trans Cooler Line Connection1/4 in. NPT
Fan Diameter10 in (254 mm)
Blade ColorBlack
Outlet LocationLower passenger side
Fan IncludedYes
Part FitmentDirect Fit
Vendor Part Number84287-B-DB-Y
Package Qty1
Package TypeEA
