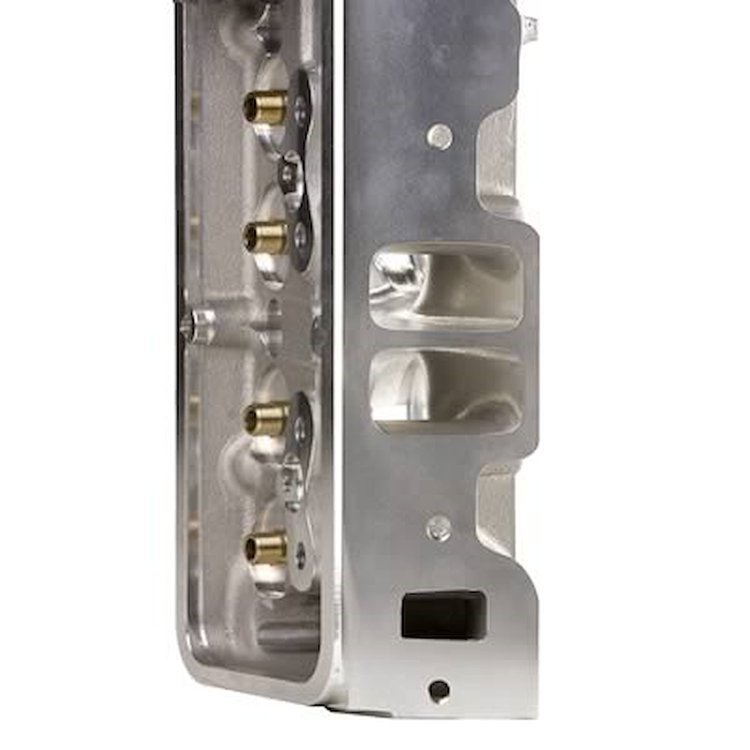

Vehicle Info Needed190cc Eliminator Vortec Street Aluminum Cylinder Heads SB-Chevy Vortec
Ships on 11/16/2026
Lowest Price Guarantee- 190cc Eliminator Vortec Street Aluminum Cylinder Heads
- SB-Chevy Vortec
- 65cc Combustion Chambers
- 190cc Intake Ports
- 64cc Exhaust Ports
- Straight Plug
- Bare Head Only
- Sold in Pairs, 2/pkg.
This is an unassembled bare cylinder head with valve guides and valve seats installed only. Does not include any parts such as valves, springs, spring components, studs or guideplates.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
The perfect configuration to build a powerful Vortec power and torque!
The AFR Vortec Emissions Legal (CARB EO #D-250-2), 190cc intake port small block Chevy cylinder heads are available in a straight plug version. They feature a 65cc combustion chamber with a 64cc exhaust port and 3/4'' thick head deck (ideal for nitrous or blower applications.) Standard valves are lightweight 8mm diameter stem, 2.020'' intake and 1.600'' exhaust with AFR's hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of idle to 5500rpm (higher rpm ranges possible depending on combination of parts), 23° valve angle, and standard valve spacing make this the perfect street head for 350ci engines from 1996-2000. No special parts are required. Dual valve cover bolt pattern is standard. Exhaust port and bolt pattern are raised 3/32" over GM L98 Heads, this rarely affects header or chassis fitment. .
Show More
190cc Eliminator Vortec Street Cylinder Head Features:
- 100% CNC Ported Combustion Chambers
- 100% CNC Ported Exhaust Ports
- 100% CNC Ported Intake Ports
- Competition 5-angle Valve Job
- 190cc Intake Ports
- 64cc Exhaust Ports
- Bead Lock Intake Valve, 2.020'' x 4.903'' Overall Valve Length
- Bead Lock Exhaust Valve, 1.600'' x 4.955'' Overall Valve Length
- PAC Racing Valve Spring: 1.290'' OD Hydraulic Roller Dual Valve Spring, 135 lbs on seat, .600'' maximum lift
- 7° Manley 4140 Chrome Moly Retainers
- 7° Bead Lock Valve Keepers
- 3/8'' Rocker Studs
- Adjustable 5/16'' Guide Plates
- Viton Valve Seals
- Hardened Spring Cup
- Intake Valve Seats
- Exhaust Valve Seats
- Bronze Valve Guides
- Standard Exhaust Bolt Pattern, Accepts Factory and Aftermarket Headers
