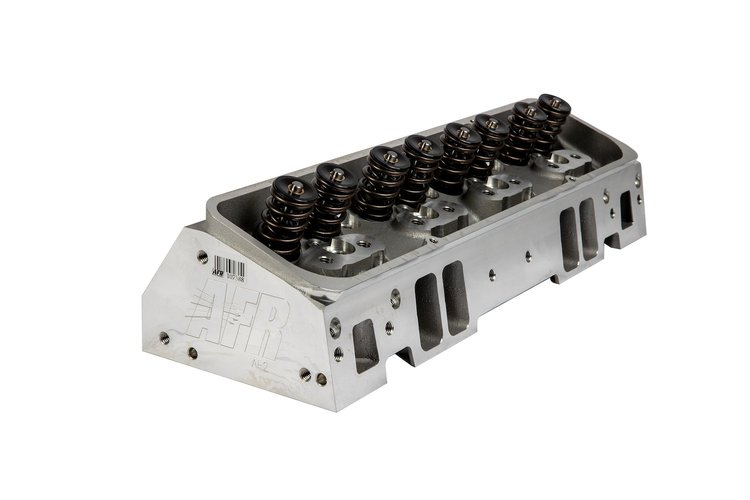

1001-FT Fully-Assembled 195cc Enforcer Cylinder Head for Small Block Chevy w/Straight Plugs & Flat Tappet Cam
InfoVehicle Info Needed
AFR - AIRFLOW RESEARCHPART NUMBER: 033-1001-FT

1001-FT Fully-Assembled 195cc Enforcer Cylinder Head for Small Block Chevy w/Straight Plugs & Flat Tappet Cam

$64300
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee
Best Value
Small Block Chevy Aluminum Cylinder Head for use with Hydraulic Flat Tappet Cam [195 cc Intake Ports, Straight Spark Plug Style]

555-514063

Small Block Chevy Aluminum Cylinder Head for use with Hydraulic Flat Tappet Cam [195 cc Intake Ports, Straight Spark Plug Style]

$66399

Items You Need

Stainless Steel Roller Rocker Arms for Small Block Chevy [1.5 Ratio, 3/8 in. Stud]

JEGS

Stainless Steel Roller Rocker Arms for Small Block Chevy [1.5 Ratio, 3/8 in. Stud]

Part Number : 555-20921
$23499$258.99
You Save$24.00
MLS Cylinder Head Gasket for Small Block Chevy (Except LT & LS Engines)

JEGS

MLS Cylinder Head Gasket for Small Block Chevy (Except LT & LS Engines)

Part Number : 555-210035
$2999$32.99
You Save$3.00
High-Temp Cylinder Head Gasket for Small Block Chevy (Except LT & LS Engines)

JEGS

High-Temp Cylinder Head Gasket for Small Block Chevy (Except LT & LS Engines)

Part Number : 555-210041
$4699$51.99
You Save$5.00
Steel Wire Ring Head Gasket Small Block Chevy

FEL-PRO

Steel Wire Ring Head Gasket Small Block Chevy

Part Number : 375-1014
$5799

Chevy Small Block
Fully-Assembled Enforcer Cylinder Head
  • 195cc Intake Port Volume
  • Springs for Flat Tappet Cam
  • Straight Plug
  • 64cc Combustion Chamber
  • 23-Degree Valve Angle
  • As-Cast Ports
  • 3-Angle Valve Job
  • A356 Aluminum
  • Sold Individually

    Breakdown of Included Items

    Flow Chart

    AFR 1001-FT Enforcer Aluminum Head Features:

    • For 350 to 400 ci engines operating below 6,000 rpm
    • For up to .600 in. lift flat tappet cam
    • Intake Port Volume: 195cc
    • Intake Port Dimension: 2.080 in. H x 1.270 in. x 5/16 in. Radius
    • Intake Port Location: Stock
    • Exhaust Port Volume: 76cc
    • Exhaust Port Dimension: 1.380 in. H x 1.420 in. W
    • Exhaust Port Location: Stock
    • Valve Cover Bolt Pattern: Perimeter Bolt
    • Valve Spring Pocket Diameter: 1.580 in. O.D
    • Max Valve Spring Pocket Machining: 1.600 in. O.D
    • Deck Thickness: .450 in.
    • Minimum Bore Diameter: 4.000 in.
    • Reduce Combustion Chamber Size by 1 cc by Flat-Milling .006 in. from the Deck Surface, Maximum Mill .048 in. to achieve 56 cc.
    • Spark Plug Dimensions: 14 mm x .750 in. with Gasket Seat Such as Autolite AR3924 or equivalent (sold separately)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCylinder Head
    BrandAFR - AIRFLOW RESEARCH
    Package Height7.0
    Package Width9.75
    Package Length22.0
    Weight28.0 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Intake Port LocationStandard
    Exhaust Valves IncludedYes
    Locks IncludedYes
    Retainers IncludedYes
    Lock Style7 degree
    Guideplates IncludedYes
    Rocker Arms IncludedNo
    Oiling StyleThrough pushrod
    Cylinder Head FinishNatural
    Valve Seats MachinedYes
    Intake Valve Angle23
    Valve Springs IncludedYes
    Spark Plug StyleStraight
    Valve Seat Machine Style3-angle
    Valve Guides IncludedYes
    Cnc-Machined Intake RunnerNo
    Intake Valves IncludedYes
    Combustion Chamber StyleHeart
    QuantitySold individually
    Valve Stem Seals IncludedYes
    Accessory Bolt Holes DrilledYes
    Exhaust Port LocationStandard
    Combustion Chamber Volume (Cc)64
    Exhaust Valve Angle23
    Steam Holes DrilledNo
    Rocker Arm Studs IncludedYes
    Cylinder Head StyleAssembled
    Part FitmentSemi Universal
    Valve Cover Mounting StylePerimeter
    Valve Stem Seal StylePositive stop
    Retainer MaterialChromoly steel
    Intake Runner Volume (Cc)195
    Cnc-Machined Exhaust RunnerNo
    Cnc-Machined Combustion ChamberNo
    Vendor Part Number1001-FT
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
