Vehicle Info NeededAFR - AIRFLOW RESEARCHPART NUMBER: 033-1383-716

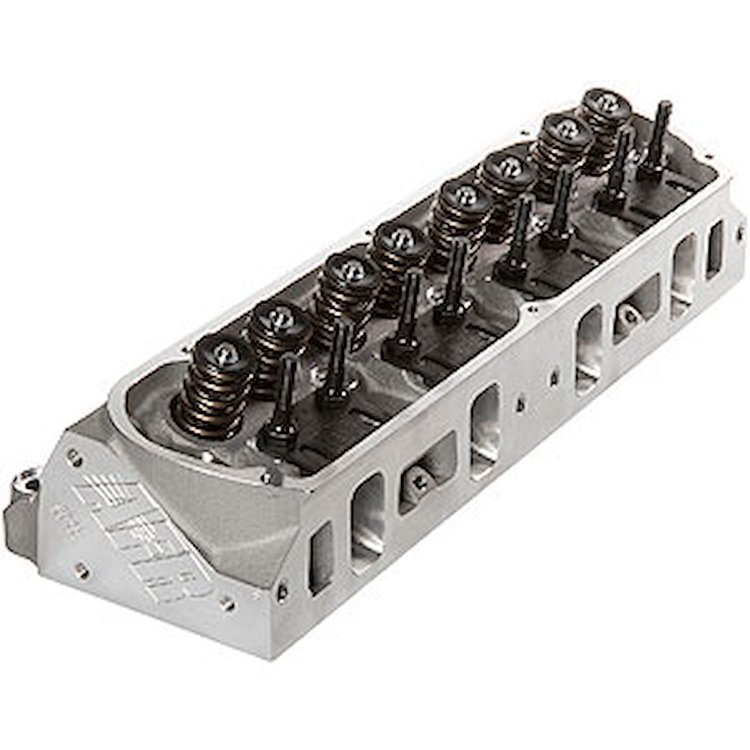

195 cc Renegade Street/Strip Aluminum Cylinder Heads
$2,69100
Ships on Sep 16, 2026
Lowest Price GuaranteeNon-Emissions Legal Renegade Cylinder Heads195cc Intake Ports 70cc Exhaust Ports, Raised .125''
- 195 cc Renegade Street/Strip Aluminum Cylinder Heads
- Small Block Ford
- 72 cc Combustion Chambers
- 7/16 in. Rocker Arm Studs
- Sold as a Pair
SBF 20 Deg 195cc Competition Heads Non Emissions - 72cc
- Stud Mount
- Assembled
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandAFR - AIRFLOW RESEARCH
Package Height8.5
Package Width12.0
Package Length24.25
Weight65.4 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedYes
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedYes
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle20
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Number Of Springs Per ValveDual
Valve Springs IncludedYes
Spark Plug StyleAngled
Valve Seat Machine Style3-angle
Damper Spring IncludedYes
Valve Guides IncludedYes
Cnc-Machined Intake RunnerYes
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold as a pair
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)70
Exhaust Port LocationStandard
Valve Guide MaterialBronze
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Combustion Chamber Volume (Cc)72
Machined For O-RingNo
Exhaust Valve Angle20
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Retainer MaterialChromoly steel
Intake Runner Volume (Cc)195
Cnc-Machined Exhaust RunnerYes
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number1383-716
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
