Vehicle Info NeededAFR - AIRFLOW RESEARCHPART NUMBER: 033-1472

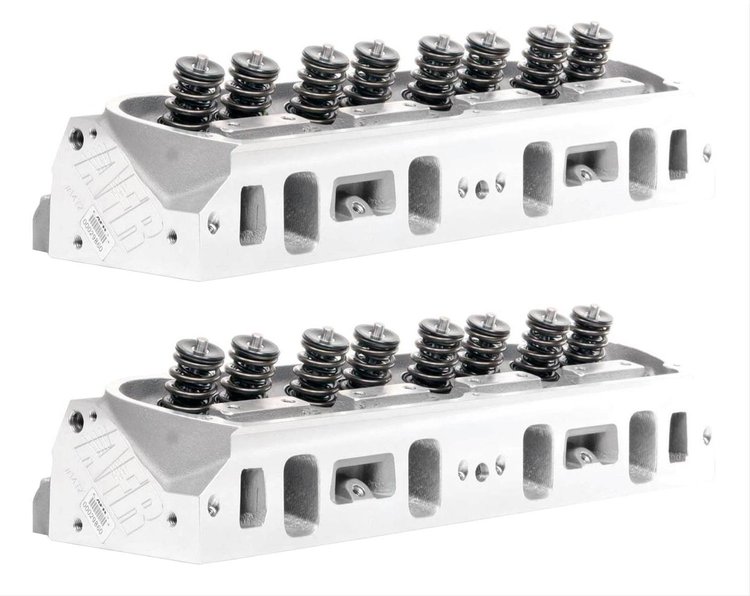

165cc Renegade Street Aluminum Cylinder Heads SB-Ford
$1,91340$2126.00You Save$212.60
2 left in stock
Ships Today
Lowest Price GuaranteeEmissions Legal Renegade Cylinder HeadsCARB EO #250-3 165cc Intake Ports 68cc Exhaust Ports
- 165cc Renegade Street Aluminum Cylinder Heads
- SB-Ford
- 60cc Combustion Chambers
- 5/16'' Pedestal Rocker Arm Mounting
- CARB EO #250-3
- Sold in Pairs, 2/pkg.
Small Block Ford 165cc Renegade Basic Package Components 100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-Angle Valve Job Intake Valve, 1.900' x 5.079' o.a.l. Exhaust Valve, 1.600' x 5.100' o.a.l. 1.290' OD Hydraulic Roller Dual Valve Spring, 135 lbs. on seat, .600' maximum lift, max RPM 6300-6500 7º Manley Chrome Moly Retainers 7º Valve Locks 5/16' Pedestal style Bolt Hole Adjustable 5/16' Guide Plates Viton Valve Seals Hardened Spring Cups Intake Valve Seats Exhaust Valve Seats Bronze Valve Guides Thermactor Air Injector Small Block Ford 165cc Renegade Street Head Specifications Head Torque w/Moly Lube 65-70 Ft. Lbs. with 7/16' Stud Rocker Pedestal Torque 25-30 Ft. Lbs. Intake Port Gasket, 1.200' x 2.000' w/ 3/8' radius Fel-Pro 375-1250 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket. Exhaust Port Gasket Fel Pro 375-1415 Head Gasket Fel Pro 375-1011-1 Head Bolts & Studs Standard ARP Head Bolt Washers Manley Standard Stud Girdle Standard Suggested Manifold RPM Performer, Performer Spark Plug Starting Range Autolite 3924 Combustion Chambers 58cc Spring Pocket can be cut to 1.625, no deeper. Valve Spacing Standard Rocker Arms Standard, will not accept rail rocker arms Valve Angle Standard Angle Mill (10cc Maximum Optional Mill) .008' per cc Flat Mill (4cc Maximum Optional Mill) .006' per cc
Part TypeCylinder Head
BrandAFR - AIRFLOW RESEARCH
Package Height8.9
Package Width12.1
Package Length24.2
Weight66.3 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverYes
Number Of Springs Per ValveDual
Valve Springs IncludedYes
Spark Plug StyleAngled
Valve Seat Machine Style3-angle
Damper Spring IncludedYes
Valve Guides IncludedYes
Cnc-Machined Intake RunnerYes
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold as a pair
Valve Stem Seals IncludedYes
Intake Valve Diameter1.9 in (48.26 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)68
Exhaust Port LocationStandard
Valve Guide MaterialBronze
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Retainer MaterialChromoly steel
Intake Runner Volume (Cc)165
Cnc-Machined Exhaust RunnerYes
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number1472
Package Qty1
Package TypeEA
