Vehicle Info NeededAFR - AIRFLOW RESEARCHPART NUMBER: 033-8019-16

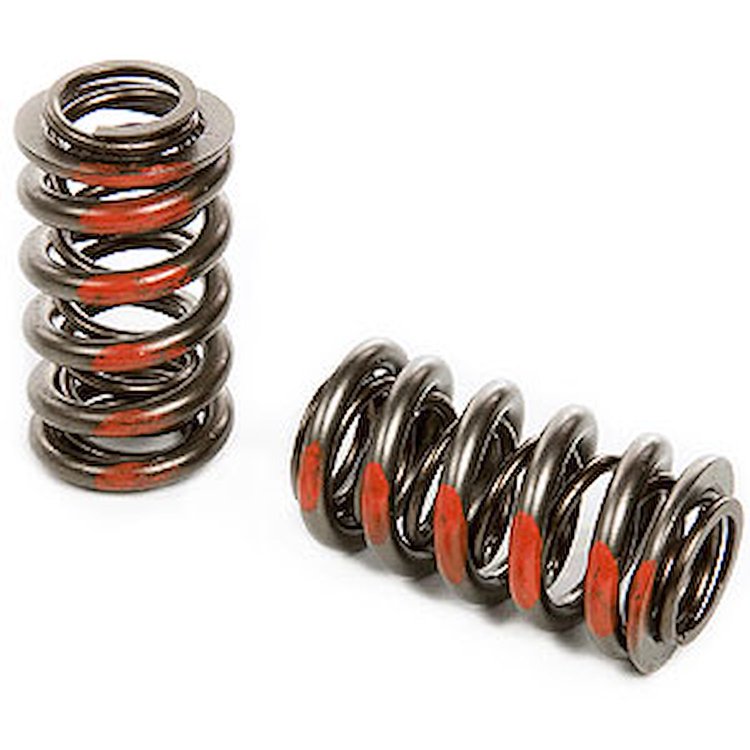

Dual Springs, Red Stripe for Hydraulic Roller Cam 1.270 in. O.D.
$35300
Ships on Sep 04, 2026
Lowest Price Guarantee1.270 in. O.D.
Dual SpringsRed Stripe Hydraulic Roller Cam Outside Diameter: 1.270 in. Inside Diameter: .645 in. 155 lbs.@ 1.810 in. 412 lbs. @ 1.210 in. Coil Bind: 1.080 in. Max Lift: .650 in. 428 lb. Spring Rate Set of 16
AFR 8019-16 PAC Racing Dual Springs for Hydraulic Roller Cam Compatible Components (Sold Separately):
- Steel Retainer: 8514-1
- Titanium Retainer: 8515-1
- Small Block Chevy or Ford Valve Lock: 9007-1
- GM LS Retainer: 8512-1
- GM LS Valve Lock: 9007-1
Part TypeValve Spring
BrandAFR - AIRFLOW RESEARCH
Package Height3.1
Package Width6.4
Package Length6.8
Weight3.6 PG
Part CategoryPerformance Parts
Installed Height (In)1.810 in.
QuantitySet of 16
Seat Pressure At Installed Height (Lbs)155 lbs.
Spring Rate (Lbs/In)428 lbs./in.
Coil Bind Height (In)1.080
Open Pressure (Lbs)412 lbs.
Vendor Part Number8019-16
Package Qty1
Package TypeEA
