The Air Lift Performance ALP4 air management system combines the ECU, solenoids, and pressure sensors into a compact all-in-one manifold for precise pressure-based control of an air suspension system. The anodized black billet-aluminum manifold is paired with a full-color touchscreen controller and mobile-app connectivity, giving the driver convenient access to presets, four-corner manual control, axle adjustments, full air-out functions, and system diagnostics.

Air Lift 27485 Features:

• Pressure-based air suspension management system
• Integrated ECU, solenoids, and pressure sensors
• Anodized black billet-aluminum manifold
• Threaded 1/4 in. FNPT manifold ports
• 3/8 in. DOT air line
• Full-color touchscreen controller with four physical buttons
• Mobile app integration
• Built-in diagnostics and compressor performance testing
• Adjustable presets, pulse rate, valet mode, show mode, and standby mode
• Upgradeable to height-based control with the available pressure-to-height upgrade kit

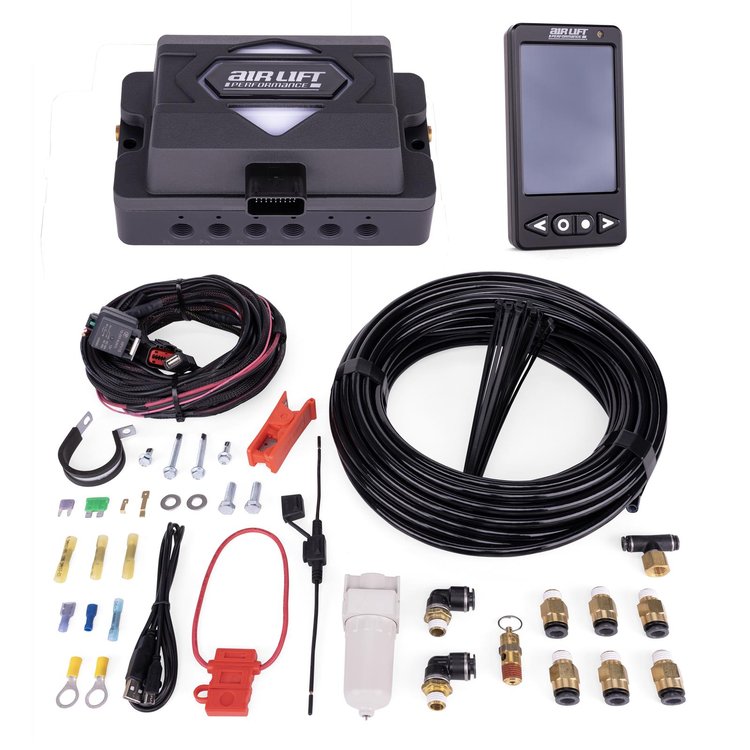

Air Lift 27485 Includes:

• ALP4 manifold
• Touchscreen controller
• Main wiring harness
• USB-A to USB-C controller cable
• Water trap
• Air line cutter
• 60 ft. of 3/8 in. DOT air line
• Required 1/4 in. MNPT-to-3/8 in. PTC fittings and mounting/electrical hardware

Notes:

• Tank and compressor are not included.
