ALL30047 Triple Pass Aluminum Radiator Kit [28 in. x 19 in. x 2 1/4 in.]

Name: ALL30047 Triple Pass Aluminum Radiator Kit [28 in. x 19 in. x 2 1/4 in.]
Brand: ALLSTAR PERFORMANCE
SKU: 049-ALL30047K
Price: 570.67 USD
Availability: InStock

^$570⁶⁷

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Triple Pass Radiators

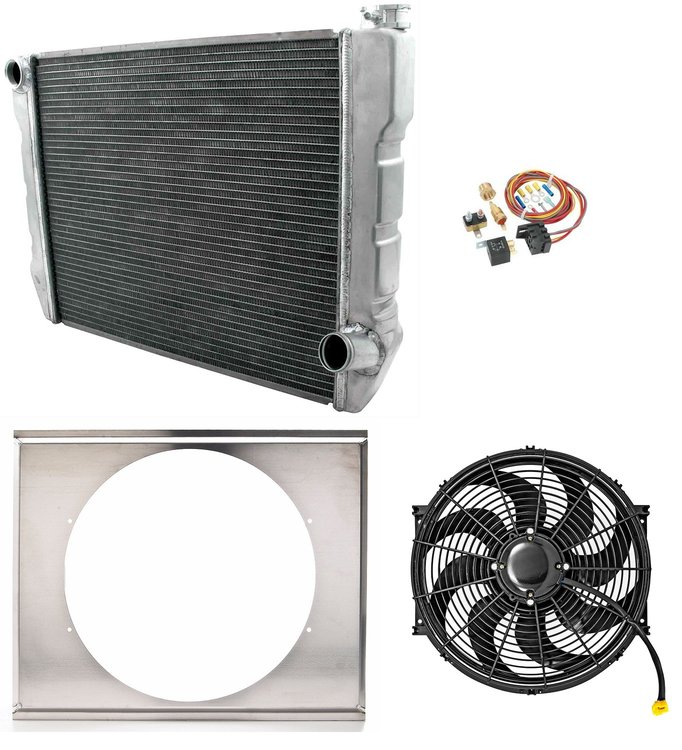

Triple Pass Aluminum Radiator Kit

28 in. Width x 19 in. Height x 2 1/4 in. Depth

Includes:

Radiator
Fan Shroud
16 in. Universal HD Electric Reversible Cooling Fan
Single Electric Fan Wiring Harness & Relay Kit

Allstar Performance ALL30047K Triple Pass Aluminum Radiator Kit Includes:
- Allstar Performance Triple Pass Aluminum Radiator ALL30047
  - 28 in. Width x 19 in. Height x 2 1/4 in. Depth
  - Crossflow
  - Core Width: 23 in.
  - Core Height: 18 in.
  - Inlet Side: Driver Side (-20 AN)
  - Outlet Side: Passenger Side (1 3/4 in.)
  - Natural Finish
- JEGS Aluminum Fan Shroud 555-52064
  - 22 7/8 in. W x 17 1/2 in. H x 1/2 in. Deep
  - Overall Height: 18.500 in.
  - Natural Finish
- JEGS Universal HD Electric Reversible Cooling Fan 555-52110
  - 16 in. Diameter
  - S-Blade
  - 2200 cfm
  - 18.9 Amp Draw
  - Includes:
    - (4) 90-degree Mounting Feet
    - (1) Nylon Tie Kit
    - (1) 9 in. Wiring Pigtail

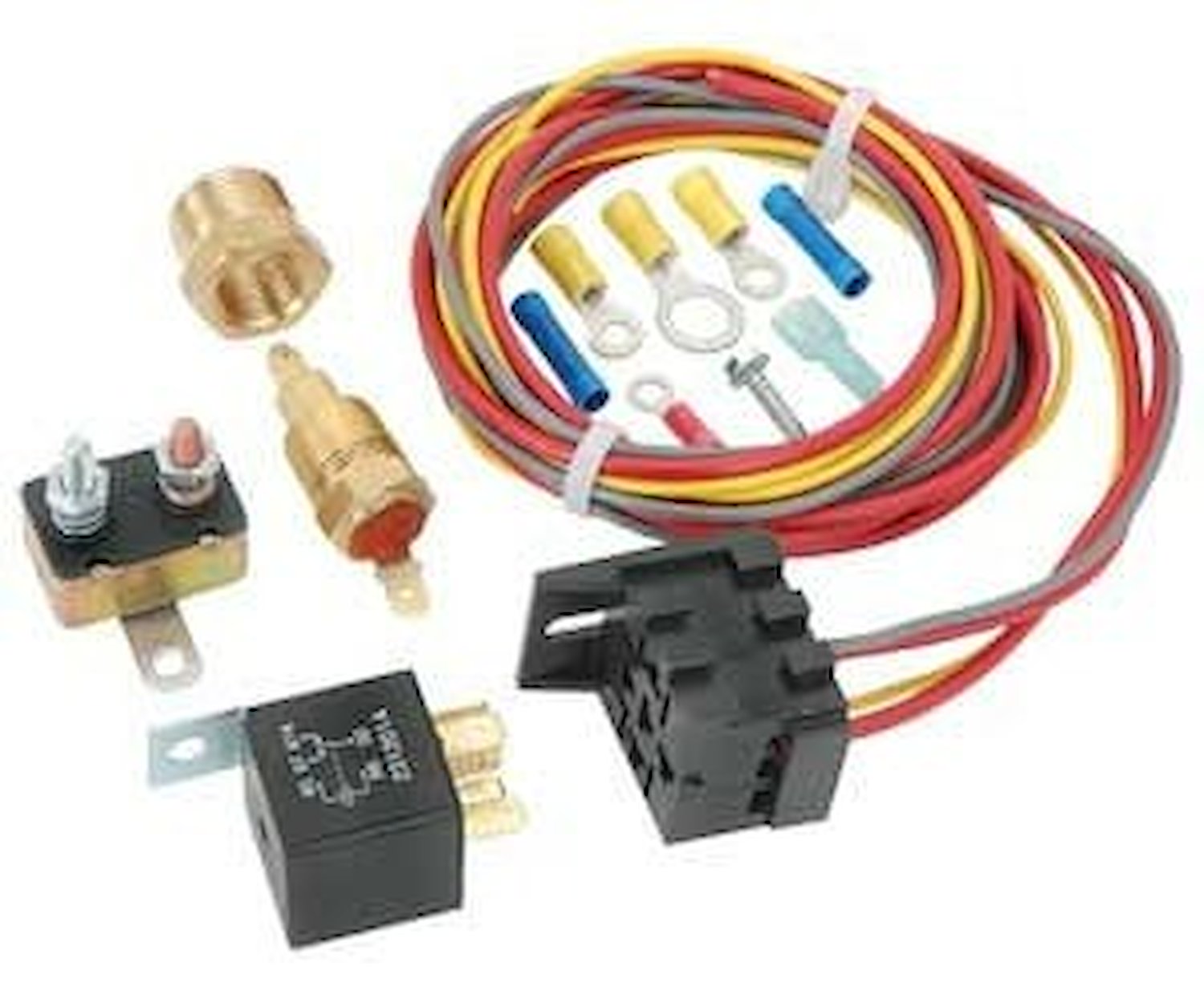

- JEGS Single Electric Fan Wiring Harness & Relay Kit 555-10561
  - 30 Amp
  - 200 degrees on/185 degrees off
  - Includes:
    - (1) JEGS 30 Amp Relay
    - (1) JEGS 30 Amp Circuit Breaker
    - (1) JEGS Temperature Sensor with 3/8 in. NPT Threads
    - (1) JEGS 3/8 in. NPT to 1/2 in. NPT Adapter
    - 80 in. of 10-18 Gauge Wire
    - Assorted Terminals & Connectors

Single Pass Radiators:
Allstar single pass radiators offer excellent quality at an affordable price. Filler necks are machined, not stamped, and water tanks are furnace brazed, not epoxied, eliminating two prime sources of leakage! The lightweight 1" tubes, arranged in two rows, offer excellent cooling and make the radiators ideal for use in all types of race cars, off-road vehicles and street machines. Available to fit Ford or GM powered vehicles, standard 1-1/2" inlets and 1-3/4" outlets have beaded hose fittings. Radiators are available in 22", 24", 26", 28", and 31" widths to fit a wide variety of chassis and engine compartment configurations. )

Dual Pass Radiators:Allstar Performance dual pass radiators circulate coolant across the top half of the radiator, then back across the bottom half, allowing up to twice the heat dissipation. These radiators offer furnace brazed tanks, two rows of 1" tubes, billet machined filler necks with overflow, standard 1-3/4" outlet and feature a universal inlet design to accept 1-1/2" standard hose, -16 or -20AN fittings (sold separately).

Triple Pass Radiators:Allstar Performance triple pass radiators circulate coolant across the top portion of the radiator, back across the mid-section and through the bottom allowing maximum heat dissipation. These radiators include furnace brazed tanks, two rows of 1" tubes, billet machined filler necks with overflow, standard 1-3/4" outlet and a universal inlet designed to accept 1-1/2" standard hose, -16 or -20AN fittings (sold separately .

**Note Dimensions are given as (Width x Height x Depth)

Part TypeRadiator

Product LineAllstar Performance Single, Dual & Triple Pass Radiators

BrandALLSTAR PERFORMANCE

Part CategoryPerformance Parts

Overall Height19 in (482.6 mm)

Outlet Size1.75 in (44.5 mm)

Radiator Cap IncludedNo

Radiator MaterialAluminum

QuantitySold as a kit

Inlet LocationUpper driver side

Inlet Size (In.)-20 AN
