ALLSTAR PERFORMANCEPART NUMBER: 049-ALL68539

Installation Bearing Kit Ford 9"

Name: Installation Bearing Kit Ford 9"
Brand: ALLSTAR PERFORMANCE
SKU: 049-ALL68539
Price: 129.99 USD
Availability: InStock

^$129⁹⁹

Ships on 09/04/2026

Lowest Price Guarantee

Ring and Pinion Installation Kits

Ford 9"
3.062" Carrier Bearing
Daytona 28-Spline Pinion Support
Solid Spacer

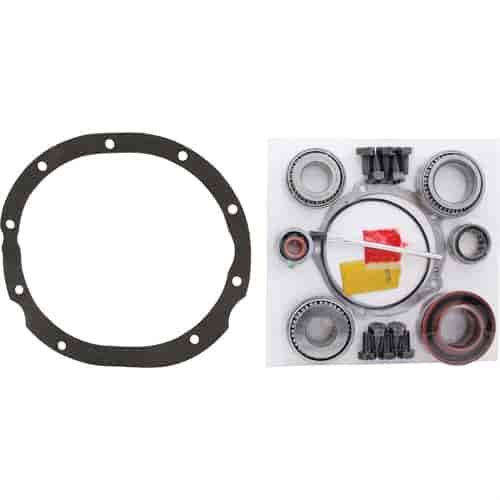

Bearing Kits Include*:
Pinion And Side (Carrier) Bearings
Pinion Seal
Pinion Depth Shims
Adjustable Side (Carrier) Shims
Crush Sleeve Or Solid Spacer
Pinion Nut
One Ounce Tube Of Silicone Or Gasket
Gear Marking Compound
Ring Gear Bolts
* Kit components shown for reference only, specific components will vary depending on application.

Available for the Following Applications:

Ford 9" (10-Bolt) 28-spline pinion, 9" dia. ring gear, 1.313" dia. pinion stem
GM 7.5" (10-Bolt) 27-spline pinion, 7.50" dia. ring gear, 1.438" dia. pinion stem, (for use with 3.23 and numerically higher ratio carriers)
GM 8.5" (10-Bolt) 30-spline pinion, 8.50" dia. ring gear, 1.625" dia. pinion stem.

Part TypeRing and Pinion Installation Kit

Product LineAllstar Ring and Pinion Gear Sets

BrandALLSTAR PERFORMANCE

Package Height2.0

Package Width11.1

Package Length11.9

Weight5.9 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Carrier Bearings IncludedYes

Axle Seals IncludedNo

Carrier Shims IncludedYes

Head Bearing IncludedNo

Cover Gasket IncludedYes

Ring Gear Bolts IncludedYes

Crush Sleeve IncludedYes

QuantitySold as a kit

Tail Bearing IncludedNo

Pinion Spline Count28

Pinion Shims IncludedYes

Pinion Nut IncludedYes

Axle Bearings IncludedNo

Ring Gear Bolts10

Part FitmentSemi Universal

Pinion Seal IncludedYes

Vendor Part NumberALL68539

Package Qty1

Package TypeEA
