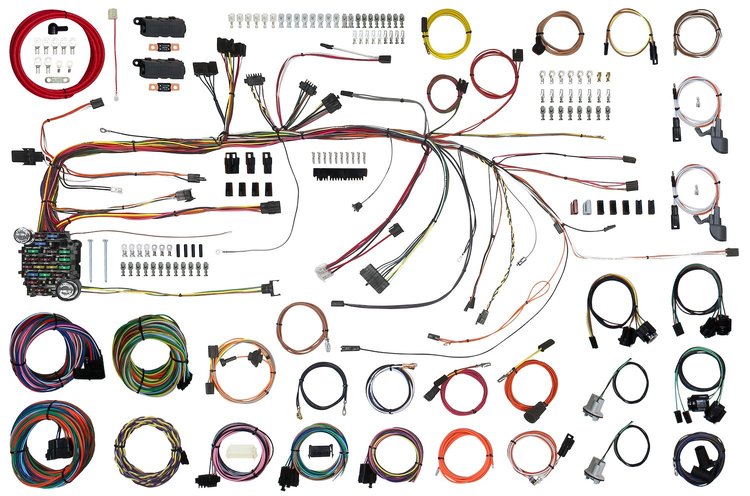

American Autowire 510174 Features:

• Factory Features Fully Supported: Now includes coverage for the gas pedal-mounted T400 kickdownswitch, 70-73 Ram Air hood scoop, and door switches (carb-mounted and firewall-mounted variants)
• Comprehensive Dash Support: Designed for the standard dash and optional Rally Gauge cluster,including factory-style lighting for the voltmeter and fuel gauge. Also supports most aftermarketgauge packages
• Heating & A/C Compatibility: Includes a complete factory-style heater harness. Optional factoryA/C kits (510996 for 1970-71, 510998 for 1972-73) are available separately. Aftermarket heat/A/Csystems are also supported
• Console PRNDL Lighting Extension: Comes pre-wired for console shifter illumination
• Tachometer Ready: Services both early (1-wire) and late (2-wire) factory tach setups
• Accurate Rear Lighting Harness: Includes all correct lamp sockets and trunk clips for a true OEM fitand finish
• Parking Lamp Compatibility: Supports both early (1970–early 1972) and late (late 1972–1973) styleparking lamps
• Rally Gauge Temp Sender Harness: Includes correct jumper harness and clear instructions for bothwarning lamp and rally gauge installations
• Ram Air Power Feeds: Comes with three distinct 12V power feed wires for various Ram Air configurations(Ram Air harnesses sold separately)
• T400 Transmission Support: All necessary underhood wiring and clear instructions included
