Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-1726170

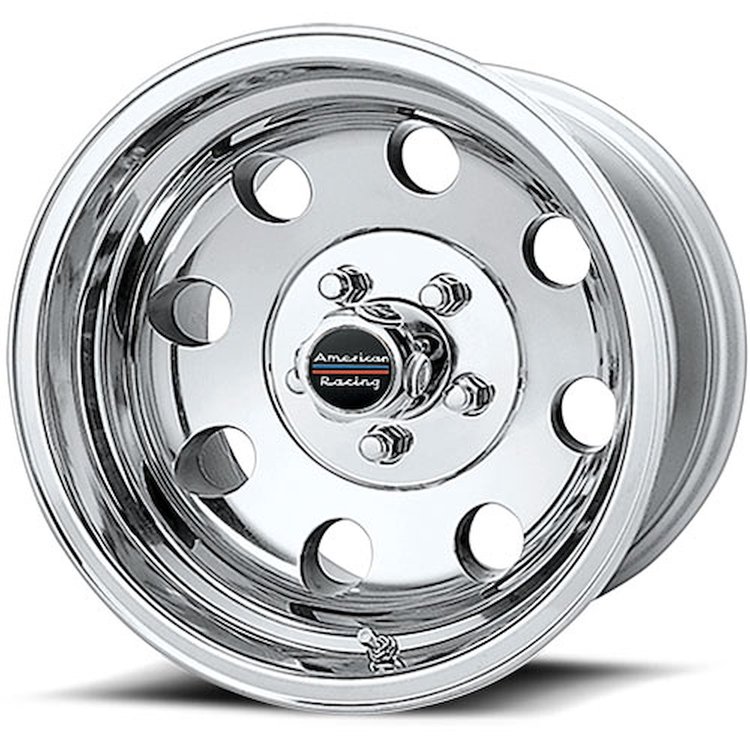

AR172 Series Baja Wheel Size: 16" x 10"
$30399
Ships Today
Lowest Price Guarantee16'' x 10''
- AR172 Series Baja Wheel
- Size: 16'' x 10''
- Bolt Circle: 8 x 170mm
- Backspacing: 4-1/2''
- Offset: -25mm
- Polished
- Center Cap Included
- Requires Conical Seat Lug Nuts (Not included)
| Required Lug Nuts |
 |
| Acorn or Tuner (Conical Seat Only) |
The American Racing AR172 Series Baja Polished Wheels are constructed from one piece cast aluminum alloy, then polished for a stunning show quality appearance. They are available in 15", 16" and 17" sizes and the classic eight hole design looks great on just about anything including modern and classic trucks, vans, SUVs, Jeeps and trailers. We offer wheel and tire packages with all our wheel lines please call a Jegs tech for package prices. American Racing AR172 Series Baja Wheels are also available in Satin Black
Show More
Features
- One Piece Aluminum Alloy Construction
- Classic Eight Hole Design with a Polished Finish
- Available in Five, Six and Eight Lug Bolt Patterns
Part TypeWheel
Product LineAmerican Racing AR172 Series Baja Polished Finish Wheels
BrandAMERICAN RACING
Package Height12.0
Package Width18.0
Package Length18.0
Weight28.85 PG
Part CategoryPerformance Parts
Hub CentricNo
Valve Stems IncludedNo
Lug Nut Seat TypeConical seat - 60 degree
Load Rating (Lbs.)3,100
Quantity1
Recommended Valve Stem (In.)7/16 pull-through or bolt-on
Recommended Valve Stem7/16 in. Pull-Through or Bolt-On
Primary Wheel ColorPolished
Wheel MaterialCast Aluminum
Wheel FinishPolished
Wheel Construction1-piece
Bolt Pattern8 x 170 mm
Back Spacing4.52 in (114.808 mm)
Offset-0.984 in.
Backspacing4.52 in.
Valve Stem IncludedNo
Center Bore Diameter5.15 in.
Primary Wheel FinishPolished
Wheel Bolt Pattern8 x 170 mm
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Load Rating3100 lbs.
Wheel Diameter16 in.
Wheel Offset-25 mm (-.9842 in)
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentUniversal
Wheel Width10 in.
Vendor Part NumberAR1726170
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
