![500 Mono Cast Wheel 17"x7" 5 x 120.65 mm Bolt Pattern 4 in. Backspacing [Gloss Black Machined]](https://www.jegs.com/images/mini_750/200/286/286-50177034500.jpg)
Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-50177034500

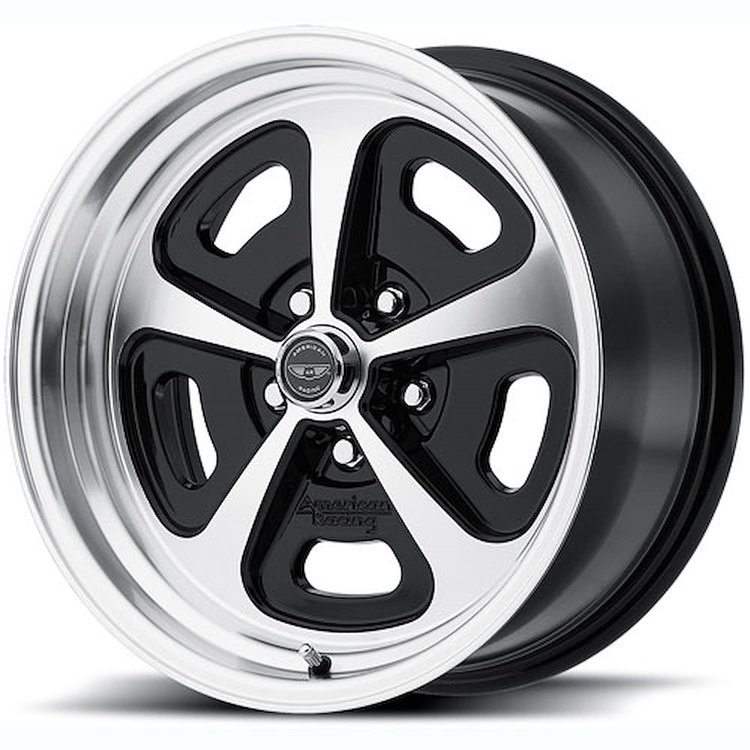

500 Mono Cast Wheel 17"x7" 5 x 120.65 mm Bolt Pattern 4 in. Backspacing [Gloss Black Machined]
$22699
Ships on 09/15/2026
Lowest Price Guarantee17 x 7
Single-piece cast aluminum wheelSize: 17"x7" Bolt Pattern: 5 x 120.65 mm Offset: 0 mm Backspacing: 4 in. Load Rating: 1580 lbs. Finish: Machined Spoke Faces
JEGS How to Measure Wheel Fitment - Click Here
A mono cast wheel is formed as one piece with no bolt-together seam, which keeps it simple and sealed. The machined spoke faces cut back through gloss black so the coating stays only in the recesses.
American Racing VN50177034500 Measurements:
- Measures 17" x 7" with a 5 x 120.65 mm bolt pattern.
- 4 in. backspacing and 0 mm offset.
- 72.56 mm center bore.
Construction and Capacity:
- Mono cast single-piece aluminum construction.
- Gloss black with machined spoke faces.
- Rated at 1580 lbs. per wheel.
- Weighs 23.37 lbs.
Classic Wheel Design with a Modern Touch
| Required Lug Nuts |
 |
| Acorn or Tuner (Conical Seat Only) |
The American Racing VN501 is a timeless one-piece cast aluminum wheel in 15 and 17-inch diameters. Designed with queues from the late 60s, the VN501 adds affordability against billet or two-piece versions. Finished in a machined finish with gloss black window accents, the VN501 offers a timeless look for your classic hot rod or muscle car. Center cap included. Lug nuts and valve stems are all sold separately.
Show More
Also Available in Satin Black Finish VersionsPart TypeWheel
Product LineAmerican Racing VN501 Series Gloss Black Machined Finish Wheels
BrandAMERICAN RACING
Package Height10.0
Package Width20.0
Package Length20.5
Weight26.115 PG
Part CategoryAccessories
Wheel Size17x7
Load Rating (Lbs.)1580
Quantity1
Wheel FinishGloss Black with Machined Lip
Wheel MaterialCast Aluminum
Bolt Pattern5 X 4.75 in.
Back Spacing4 in.
Hub Centric Ring CompatibleYes
Offset0 In.
Backspacing4 In.
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter2.86 In.
Load Rating1580 lbs.
Wheel Diameter17 in.
Wheel Bolt Pattern5 x 120.65 mm
Wheel TypeCar Street Wheels
Wheel Offset0 mm
Part FitmentUniversal
Wheel Width7 in.
Vendor Part NumberVN50177034500
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
