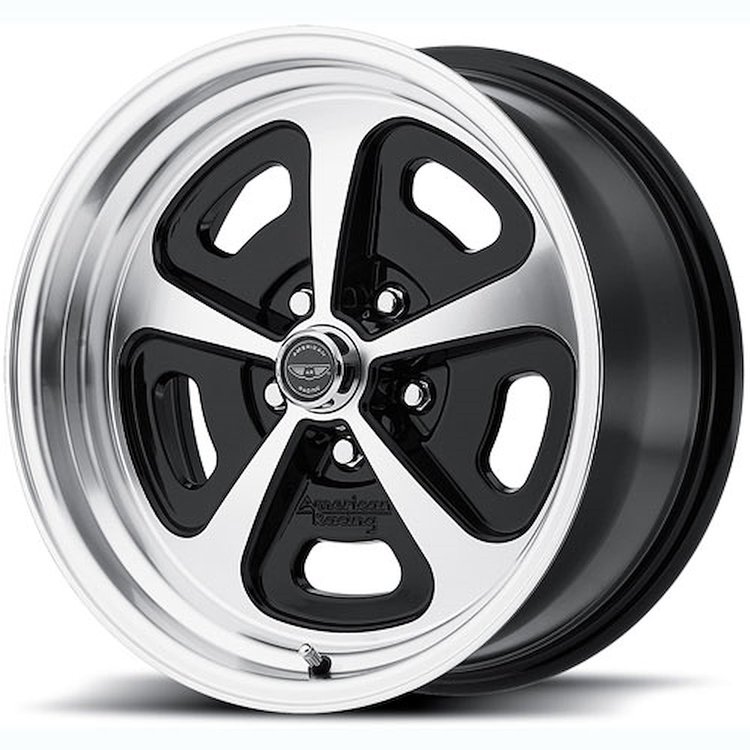

500 Mono Cast Wheel 17"x9" 5 x 114.3 mm Bolt Pattern 5 in. Backspacing [Gloss Black Machined]
InfoVehicle Info Needed
AMERICAN RACINGPART NUMBER: 286-50179012500

500 Mono Cast Wheel 17"x9" 5 x 114.3 mm Bolt Pattern 5 in. Backspacing [Gloss Black Machined]

$27999
ShippingShips on 11/16/2026
Lowest PriceLowest Price Guarantee

17 x 9
Single-piece cast aluminum wheel
  • Size: 17"x9"
  • Bolt Pattern: 5 x 114.3 mm
  • Offset: 0 mm
  • Backspacing: 5 in.
  • Load Rating: 1580 lbs.
  • Finish: Machined Spoke Faces

    JEGS How to Measure Wheel Fitment - Click Here

    This is the wider 9 in. version of the mono cast 500, cut for the 5 x 114.3 mm Ford and import circle. A zero offset keeps it centered rather than pushed in or out.

    American Racing VN50179012500 Measurements:

    • Measures 17" x 9" with a 5 x 114.3 mm bolt pattern.
    • 5 in. backspacing and 0 mm offset.
    • 72.56 mm center bore.

    Construction and Capacity:

    • Mono cast single-piece aluminum construction.
    • Gloss black with machined spoke faces.
    • Rated at 1580 lbs. per wheel.
    • Weighs 26.29 lbs.

      • Classic Wheel Design with a Modern Touch

      Required Lug Nuts
      Acorn or Tuner (Conical Seat Only)

      The American Racing VN501 is a timeless one-piece cast aluminum wheel in 15 and 17-inch diameters. Designed with queues from the late 60s, the VN501 adds affordability against billet or two-piece versions. Finished in a machined finish with gloss black window accents, the VN501 offers a timeless look for your classic hot rod or muscle car. Center cap included. Lug nuts and valve stems are all sold separately.

      Show MoreAlso Available in Satin Black Finish Versions

    Part TypeWheel
    Product LineAmerican Racing VN501 Series Gloss Black Machined Finish Wheels
    BrandAMERICAN RACING
    Package Height11.3
    Package Width19.9
    Package Length20.2
    Weight26.19 PG
    Part CategoryAccessories
    Wheel Size17x9
    Load Rating (Lbs.)1580
    Quantity1
    Wheel FinishGloss Black with Machined Lip
    Wheel MaterialCast Aluminum
    Bolt Pattern5 x 4.5 in.
    Back Spacing5 in.
    Hub Centric Ring CompatibleYes
    Offset0 In.
    Backspacing5 in.
    Small Diameter Lug Nuts RequiredNo
    Center Bore Diameter2.86 In.
    Load Rating1580 lbs.
    Wheel Diameter17 in.
    Wheel Bolt Pattern5 x 114.3 mm
    Wheel TypeCar Street Wheels
    Wheel Offset0 mm
    Part FitmentUniversal
    Wheel Width9 In.
    Vendor Part NumberVN50179012500
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
