![KMC KM718 Summit Wheel [Size: 17" x 8.5"] Satin Black](https://www.jegs.com/images/mini_750/200/286/286-71878563700.jpg)
Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-71878563700

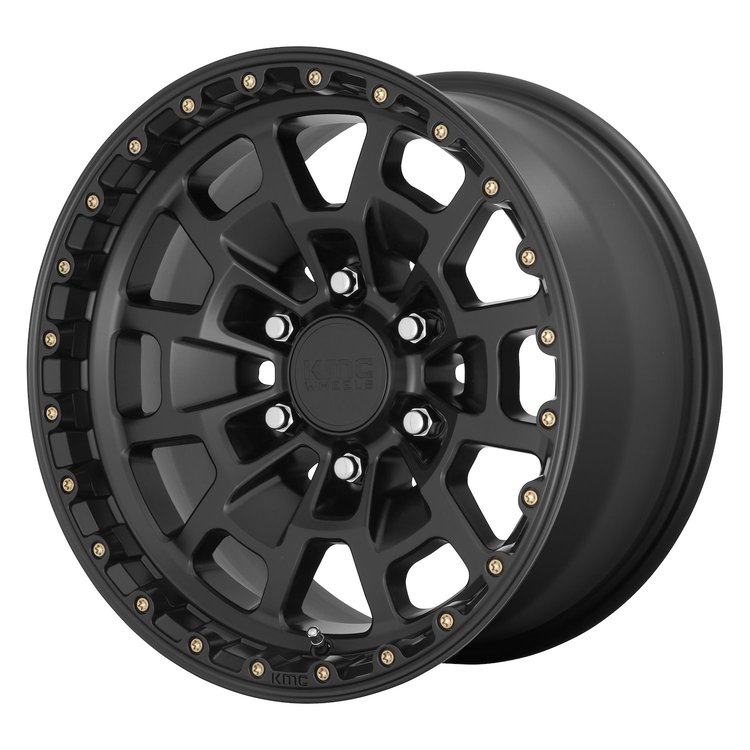

KMC KM718 Summit Wheel [Size: 17" x 8.5"] Satin Black
$37000
Ships Tomorrow
Lowest Price Guarantee17" x 8.5"
KM718 Summit WheelSize: 17" x 8.5" Bolt Pattern: 6 x 135 mm Back Spacing: 4.75" Offset: 0 mm Center Bore: 87.1 mm Load Rating: 2500 lbs. Finish: Satin Black
JEGS How to Measure Wheel Fitment click here
KM71878563700 [71878563700] Features:
- Includes KM718 Summit Wheel and Center Cap
- One-piece Aluminum Casting
- Unique Multi-Spoke Wheel Pattern
- Simulated Beadlock Ring
- Satin Black Painted Finish
- Protective Clear-Coat
- Uses Conical Shaped Lug Nuts
- These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)
Part TypeWheel
BrandAMERICAN RACING
Package Height11.0
Package Width20.0
Package Length20.0
Weight30.085 PG
Part CategoryPerformance Parts
Center Cap FinishBlack
Wheel Size17 x 8.5 in.
Lug Nut Seat TypeConical seat - 60 degree
Valve Stems IncludedNo
Load Rating (Lbs.)2,500
ColorBlack
Tpms Sensor CompatibleYes
Quantity1
Tpms CompatibleYes
Primary Wheel ColorBlack
Wheel MaterialCast Aluminum
Wheel FinishSatin Black
Wheel Construction1-piece
Back Spacing4.75 in (120.65 mm)
Bolt Pattern6 x 135 mm
Offset0 In.
Backspacing4.75 in.
Center Cap MaterialPlastic
Valve Stem IncludedNo
Wheel Bolt Pattern6 x 135 mm
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Load Rating2500 lbs.
Wheel Diameter17 in.
Center Cap InstallationSnap-on
Wheel Offset0 mm (0 in)
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width8.5 in.
Vendor Part NumberKM71878563700
Package Qty1
Package TypeEA
