Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-7676782

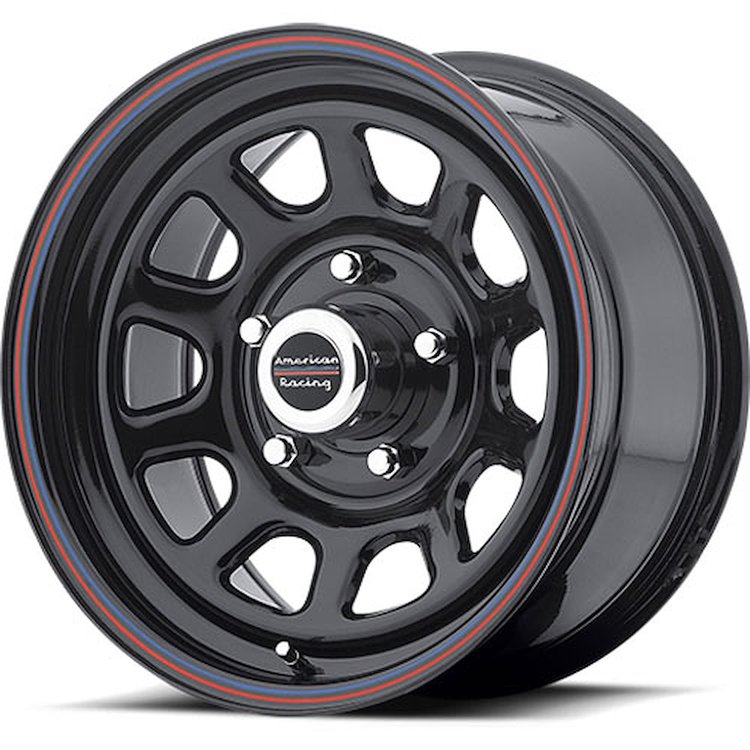

AR767 Series D Window Wheel Size: 16" x 7"
$22999
Ships on 09/14/2026
Lowest Price Guarantee16'' x 7''
- AR767 Series D Window Wheel
- Size: 16'' x 7''
- Bolt Circle: 8 x 6-1/2''
- Backspacing: 4''
- Gloss Black w/Stripes
- Center Cap Not Included (Sold Separately)
- Requires Conical Seat Lug Nuts (Not Included)
| Required Lug Nuts |
 |
| Acorn or Tuner (Conical Seat Only) |
American Racing AR767 Series Gloss Black Wheels are available in 15" and 16" sizes with neutral to low offsets to fit most classic muscle cars, hot rods and trucks. These two piece stamped steel wheels feature a ten "D" window design and a gloss black painted finish with red and blue pin striping around the outer wheel lip.
Show More
Features:
- Two Piece Stamped Steel Construction
- Gloss Black Painted Finish w/Red and Blue Pin Stripes
- Ten "D" Window Design
Part TypeWheel
Product LineAmerican Racing AR767 Series Gloss Black Wheels
BrandAMERICAN RACING
Package Height7.0
Package Width16.0
Package Length16.0
Weight39.6 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)3,650
Recommended Valve Stem7/16 in. Pull-Through or Bolt-On
Recommended Valve Stem (In.)7/16 pull-through or bolt-on
Wheel MaterialSteel
Wheel FinishGloss Black with Red Accents
Back Spacing4 in (101.6 mm)
Bolt Pattern8 x 6.5 in.
Offset0 In.
Hub Centric Ring CompatibleNo
Backspacing4 In.
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter5.15 in.
Wheel Bolt Pattern8 x 6 1/2 (165.1 mm)
Load Rating3650 lbs.
Wheel Diameter16 in.
Wheel Offset0 mm (0 in)
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width7 in.
Vendor Part NumberAR7676782
Package Qty1
Package TypeEA
No Questions
No Reviews
