Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-7676835

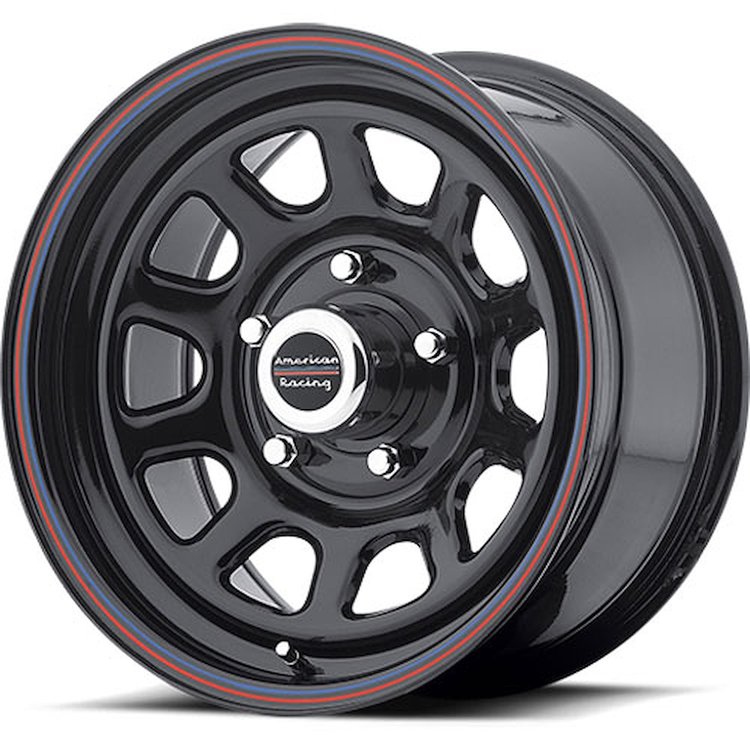

16x8 BLACK D WINDOW 5X135
$27299
Ships on 09/14/2026
Lowest Price Guarantee- 16x8 BLACK D WINDOW 5X135
center cap sold separately
- Center Cap Not Included (Sold Separately)
- Requires Conical Seat Lug Nuts (Not Included)
| Required Lug Nuts |
 |
| Acorn or Tuner (Conical Seat Only) |
American Racing AR767 Series Gloss Black Wheels are available in 15" and 16" sizes with neutral to low offsets to fit most classic muscle cars, hot rods and trucks. These two piece stamped steel wheels feature a ten "D" window design and a gloss black painted finish with red and blue pin striping around the outer wheel lip.
Show More
Features:
- Two Piece Stamped Steel Construction
- Gloss Black Painted Finish w/Red and Blue Pin Stripes
- Ten "D" Window Design
Part TypeWheel
Product LineAmerican Racing AR767 Series Gloss Black Wheels
BrandAMERICAN RACING
Package Height8.0
Package Width16.0
Package Length16.0
Part CategoryPerformance Parts
Hub CentricYes
Valve Stems IncludedNo
Lug Nut Seat TypeConical seat - 60 degree
Load Rating (Lbs.)2,000
Quantity1
Recommended Valve Stem (In.)7/16 pull-through or bolt-on
Recommended Valve Stem7/16 in. Pull-Through or Bolt-On
Primary Wheel ColorBlack
Wheel MaterialSteel
Wheel FinishGloss Black
Wheel Construction2-piece
Back Spacing4.97 in (126.238 mm)
Functional BeadlockNo
Bolt Pattern5 x 135 mm
Offset0.472 in.
Beadlock FunctionalNo
Beadlock IncludedNo
Backspacing4.97 in.
Valve Stem IncludedNo
Center Bore Diameter3.3 in.
Wheel Bolt Pattern5 x 135 mm
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Load Rating2000 lbs.
Wheel Diameter16 in.
Wheel Offset12 mm (.4724 in)
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width8 In.
Vendor Part NumberAR7676835
Package Qty1
Package TypeEA
