Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-VN5057861

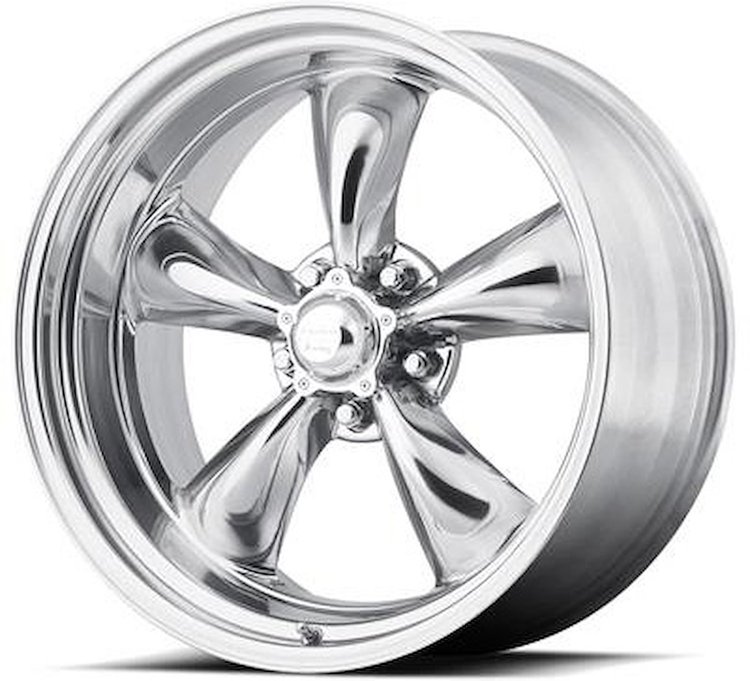

VN505 Series Classic Torq-Thrust II Wheel Size: 17" x 8"
$45499
Ships Tomorrow
Lowest Price Guarantee17" x 8"
- VN 505 Series Classic Torq-Thrust II Wheel
- Size: 17" x 8"
- Bolt Circle: 5 x 4.750"
- Rear Spacing: 4.00"
- Offset: -12 mm
- Polished
Part TypeWheel
BrandAMERICAN RACING
Package Height11.0
Package Width19.0
Package Length19.0
Weight27.34 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,580
Quantity1
Recommended Valve Stem (In.)7/16 pull-through or bolt-on
Recommended Valve Stem7/16 in. Pull-Through or Bolt-On
Wheel MaterialCast Aluminum
Wheel FinishPolished
Back Spacing4.07 in (103.378 mm)
Bolt Pattern5 X 4.75 in.
Offset-0.433 in.
Hub Centric Ring CompatibleYes
Backspacing4.07 In.
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter2.862 in.
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Load Rating1580 lbs.
Wheel Diameter17 in.
Wheel Offset-11 mm (-.4331 in)
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width8 In.
Vendor Part NumberVN5057861
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
