Apr Intercooler System - B9 1.8/2.0 Tfsi

• Silver / Natural
• Air To Air
• Core Frontal Area (In Power Of 2): 357.5
• Core Height (In): 16.25
• Core Type: Bar And Plate
• Core Volume (In Power Of 3): 804.38

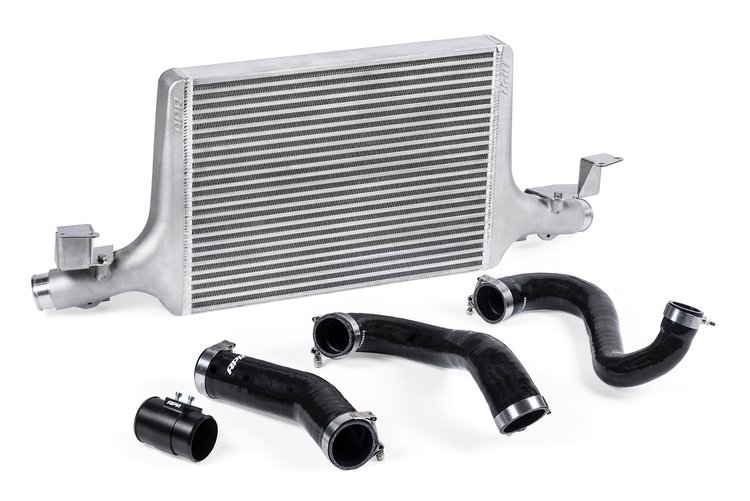

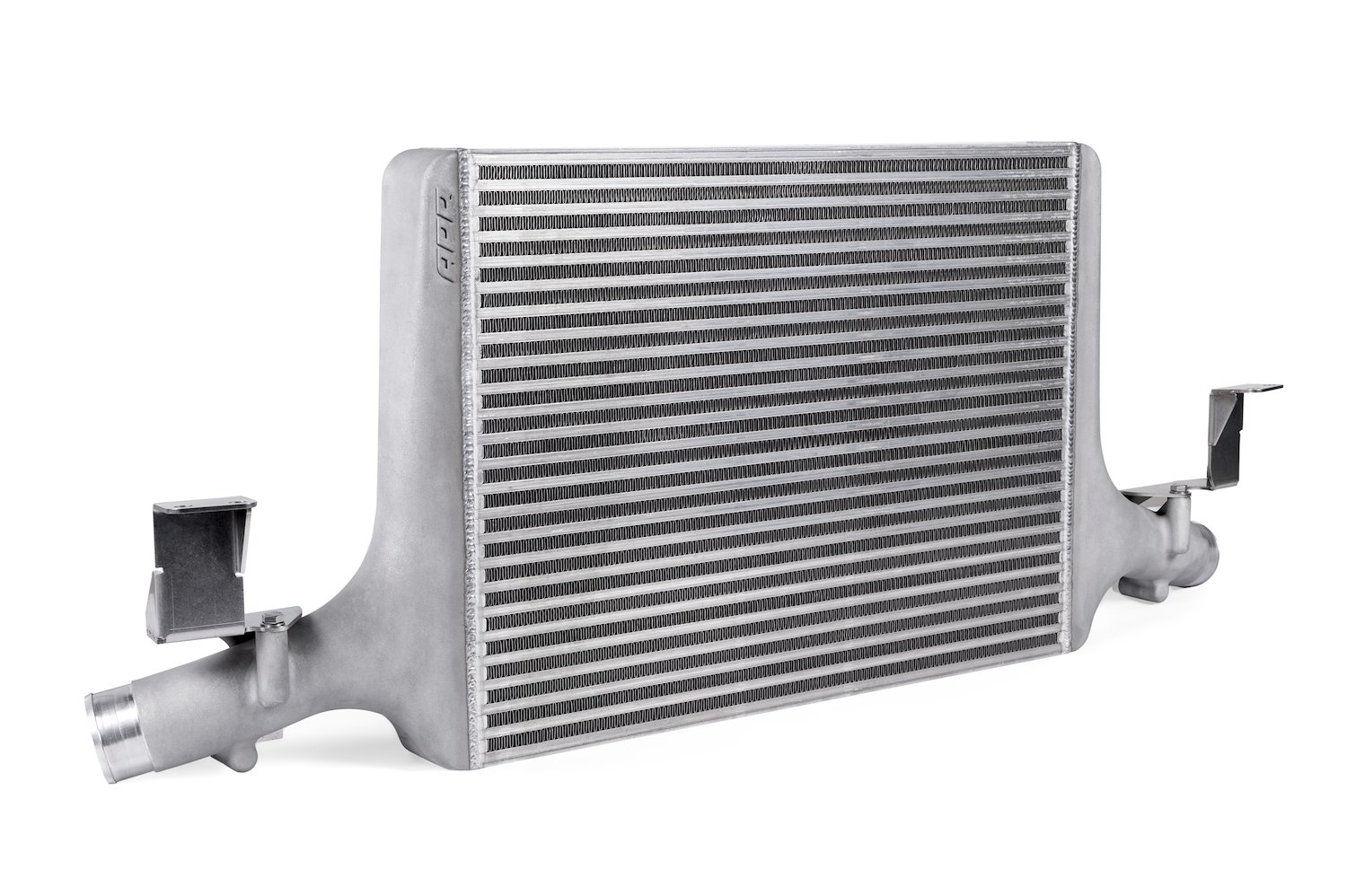

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

• This system does not fit ROW vehicles with the shorter crash bar support brackets.
• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Retained as high as 45 AWHP compared to the factory system!
• Massive frontal surface area and core volume
• 3.125" x 5.75" x 28.25" - 162.4 in' front. & 507.62 in' volume - OEM
• 2.250" x 16.2" x 22.00" - 356.4 in' front. & 801.90 in' volume - APR
• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!
• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.
• Silicone inlet and outlet hoses
• Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
• Clampco T-bolt clamps
• Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.
• Billet MAP housing
• Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
• Easy to install
• Simple bolt-on install with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Emissions Note:

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
