APRPART NUMBER: 172-MS100127

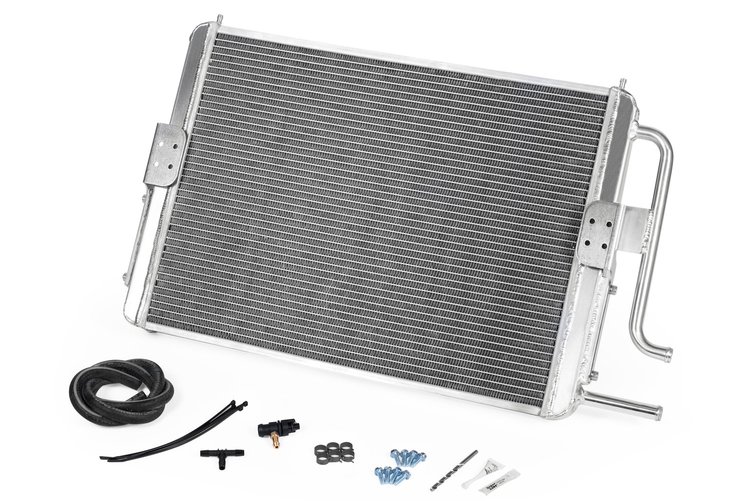

Heat-Exchanger Radiator 2010-2018 Audi S4/S5/S6/A6 Quattro/A7 Quattro/Q5 3.0L/4.0L
$1,59995
Audi
Heat-Exchanger Radiator2010-2018 Audi S4/S5/S6/A6 Quattro/A7 Quattro/Q5 3.0L/4.0L Air-to-Water Dual-Pass Core Dimensions: 22 in. L x 17.400 in. H x 1.700 in. W Natural Finish
APR MS100127
Features:
- Lowers intake air temperatures (IAT)
- Minimizes heat soaking through external louvered fins
- 140-percent larger surface area than OEM
- Core Frontal Area (in.^2): 382.800
- Core Volume (in.^3): 650.760
- Fully integrates into the factory cooling system
- A self-bleeding cooling circuit automatically removes air from the system
- Full control is retained by the ECU to protect against pump failure and coolant leaks
Notes:
- Some Audi S4/S5 and A6/A7 applications may require Radiator Fit Kit 172-MS100136 (required when the cooler has an inlet and outlet on opposite sides)
- Audi S4/S5 models with Audi Drive Select (ADS) coolers will require custom relocation of the cooler
Emissions Note:
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCooler
BrandAPR
Package Height6.0
Package Width22.0
Package Length33.0
Weight14.0 PG
Part CategoryPerformance Parts
QuantitySold individually
MaterialAluminum
Fan IncludedNo
Part FitmentSemi Universal
Cooler FinishNatural
Vendor Part NumberMS100127
Package Qty1
Package TypeEA
No Questions
No Reviews
