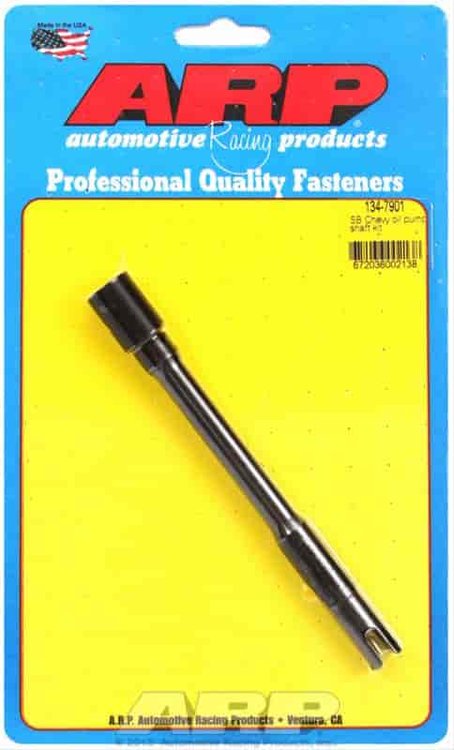

Oil Pump Shaft Small Block Chevy

Name: Oil Pump Shaft Small Block Chevy
Brand: ARP
SKU: 070-134-7901
Price: 15.99 USD
Availability: InStock

^$15⁹⁹

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Best Value

Save
^$2⁴⁰

555-23650

High-Strength Oil Pump Shaft Small Block Chevy & 90° V6

^$13⁵⁹

Chevy

Up to 1996 Small Block Chevy

SB Chevy oil pump shaft kit

ARP's Oil Pump Driveshafts are designed as an extra heavy-duty shaft that will provide you with the necessary reliability and cure to an all-too common problem of oil driveshaft failure. These driveshafts are made from heat-treated, premium grade aerospace chrome moly steel and with a larger diameter than OEM. ARP's oil pump driveshafts handle the added torque requirements of increased capacity oil pumps or heavy viscosity lubricants. Available for Chevy and Ford applications. Note: Make sure to always check shaft to block and pump to distributor clearances.

Chevy: Made from premium grade 8740 and heat-treated to 190,000 psi. Uses a unique manufacturing process where the alignment sleeve is roll formed onto the shaft (not welded or pinned), enabling the sleeve to float, allowing for slight misalignment.

Ford: Made from ARP2000 and heat-treated to 220,000 psi. These pump drives feature a CNC milled (not broached) hex, and has the retaining washer installed.

Part TypeOil Pump Shaft

Product LineARP Oil Pump Driveshafts

BrandARP

Package Height0.2

Package Width5.5

Package Length9.4

Weight0.35 PG

Part CategoryPerformance Parts

Hardened ShaftYes

QuantitySold individually

Drive Gear IncludedNo

For Use With High Volume Oil PumpYes
