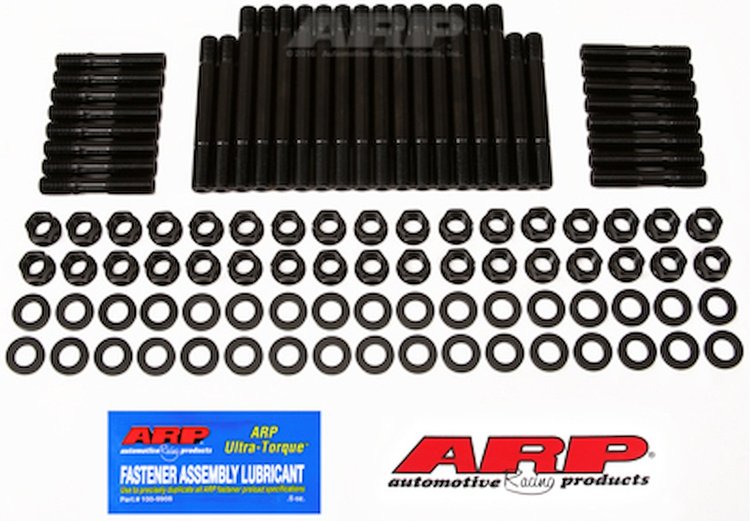

Head Studs w/Hex Nuts (U/Cut) Small Block Chevy cast iron & aluminum
InfoVehicle Info Needed
ARPPART NUMBER: 070-234-4401

Head Studs w/Hex Nuts (U/Cut) Small Block Chevy cast iron & aluminum

$20599
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Thread Sealant 1/2 oz Tube

JEGS

Thread Sealant 1/2 oz Tube

Part Number : 555-28011
$539$5.99
You Save$0.60
Ultra-Torque Assembly Lube 1.69 ounces

ARP

Ultra-Torque Assembly Lube 1.69 ounces

Part Number : 070-100-9909
$1099

Small Block Chevy
    Head Studs w/Hex Nuts (U/Cut)
  • Small Block Chevy cast iron & aluminum

    SB Chevy undercut hex head stud kit

ARP's Undercut Head Studs are manufactured from premium 8740 chrome moly steel and heat treated to 190,000 psi. These studs are thread rolled after the heat treating process, which vastly improves their fatigue tolerance. Undercutting of the stud equalizes the "stretch", which makes for a more consistent clamping force; and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing. Included are hex nuts and parallel ground washers. Also available are Undercut Head Studs with 12-Point Nuts.

Show More

Features:

  • Premium 8740 chrome moly steel
  • 190,000 psi tensile strength
  • Heat treated and thread rolled
  • More consistent clamping force
  • Helps prevent blown head gaskets
  • Includes hex nuts and parallel ground washers
  • For most domestic and import applications
Part TypeCylinder Head Bolts and Studs
Product LineARP Undercut Head Studs with Hex Nuts
BrandARP
Package Height2.3
Package Width4.2
Package Length8.7
Weight5.93 PG
Part CategoryPerformance Parts
Washers IncludedYes
QuantitySold as a kit
Fastener StyleStud
Fastener FinishBlack oxide
Cut To FitNo
Part FitmentSemi Universal
Fastener Material8740 chromoly
Head StyleHex
Undercut StudYes
Vendor Part Number234-4401
Package Qty1
Package TypeEA
