Rod Bolt Kit Small Block Ford 4.6/5.4L Modular
InfoVehicle Info Needed
ARPPART NUMBER: 070-256-6301

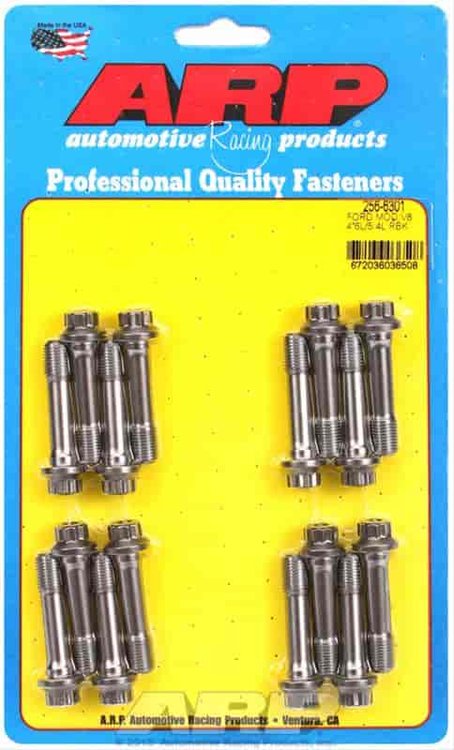

Rod Bolt Kit Small Block Ford 4.6/5.4L Modular

$14399
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Ford
    Rod Bolt Kit
  • Small Block Ford
  • 4.6/5.4L Modular
  • Set of 16


    Rod Bolt Stretch & Torque Specs
  • Stretch (inches) .0065-.0070
  • Torque (ARP Lube) 40 ft./lbs.

ARP's Pro Series Rod Bolts are substantially better than the stock OEM and most aftermarket bolts, used in a variety of applications from rebuilt stock motors to highly modified powerplants in circle track, marine and drag racing engines – including those with superchargers and/or nitrous oxide injection systems. For the most severe applications, ARP has developed the Pro Series Wave-Loc rod bolts. These ultra heavy-duty rod bolts are made from a special material - ARP2000, which has approximately 200% the fatigue life of 8740 chrome moly steel. The tensile strength of the pro series is 220,000 psi and is capable of more than 12,000 lbs. clamping force. Also featured is Wave-Loc design, which contacts the rod and cap for optimum alignment and reduction of fluctuating stress. Wave-Loc provides a snug fit with superior grain flow, virtually eliminating galling or scoring of the rod.

Show More

Features:

  • Ultra heavy-duty, for the most severe applications
  • Approximately 200% the fatigue life of 8740 chrome moly steel
  • 220,000 psi tensile strength
  • 12,000 lbs. clamping force
  • Wave-Loc design
    • Contacts the rod and cap for optimum alignment and reduction of luctuating stress – which strengthens the rod itself
    • Provides snug fit for all OEM connecting rods (interference range of .001" to .005"), despite wide range of factory rod bolt hole tolerances
    • Superior grain flow
    • Galling and scoring of the rod is virtually eliminated
Part TypeConnecting Rod Bolt
Product LineARP Pro Series Rod Bolts
BrandARP
Package Height0.5
Package Width5.5
Package Length7.9
Weight0.95 PG
Part CategoryPerformance Parts
Nuts IncludedNo
Connecting Rod ManufacturerStock
Connecting Rod Bolt MaterialARP2000 alloy
Fastener Yield Strength (Psi)200,000
Cap Retention StyleCap screw
QuantitySold as a set of 16
Part FitmentSemi Universal
Rod Bolt Nut Style12-point
Rod Bolt Head StyleE
Vendor Part Number256-6301
Package Qty1
Package TypeEA
