Arroyo AR2000 is a TBR tire built for even wear, quiet operation, and dependable wet-weather grip. Solid closed shoulders promote uniform wear and low noise across a wider tread, while three rows of siped, independent tread blocks improve traction in wet conditions. A wide, flat tread radius increases road contact and distributes load evenly, and four pyramidal steel belts reinforce the footprint for enhanced puncture protection. Together, the sidewall design and steel belt construction reduce fatigue and extend casing life — making the AR2000 a solid choice for fleets that need consistent performance and long-term durability.

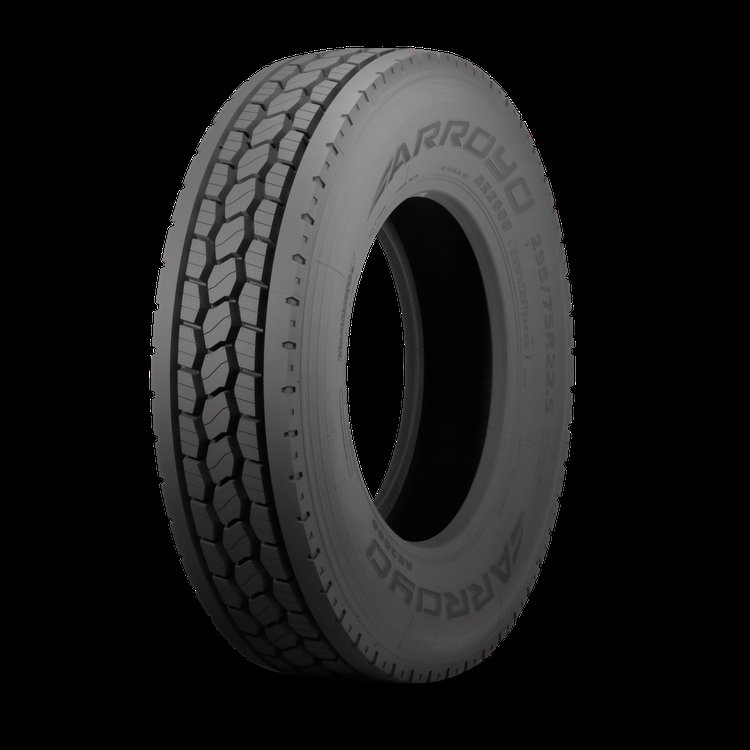

Arroyo Tire A2K002 AR2000 Drive (Close Shoulder) Tire, 295/75R22.5 [Blackwall] Features:

• Tread Depth: 27.97 in./32nds
• Section Width: 11.73 in.
• Tread Width: 230 mm
• Overall Diameter: 40.39 in.
• Max Load Single (lbs.): 6610
• Minimum Recommended Wheel Width: 8.25 in.
• Maximum Recommended Wheel Width: 9 in.
• Ply: 16(H)
• Maximum Inflation Pressure: 120
