Arroyo AR2200 is a close-shoulder drive tire built for TBR fleets that need even wear, quiet operation, and reliable wet-weather traction. Solid closed shoulders promote uniform wear and low noise across a wider tread, while three rows of siped, independent tread blocks deliver improved grip in wet conditions. A wide, flat tread radius maximizes road contact and evens out load distribution, and four pyramidal steel belts reinforce the footprint for added puncture protection. Working together, the sidewall and steel belt construction reduce fatigue and extend casing life — making the AR2200 a dependable drive-position tire for long-haul durability.

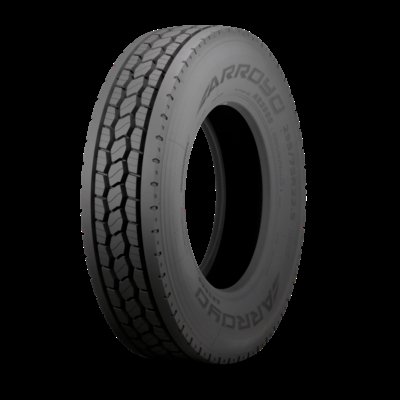

Arroyo Tire A2K202 AR2200 Drive (Close Shoulder) Tire, 285/75R24.5 [Blackwall] Features:

• Tread Depth: 27.97 in./32nds
• Section Width: 11.14 in.
• Tread Width: 220 mm
• Overall Diameter: 41.81 in.
• Max Load Single (lbs.): 6780
• Minimum Recommended Wheel Width: 7.50 in.
• Maximum Recommended Wheel Width: 9 in.
• Ply: 16(H)
• Maximum Inflation Pressure: 120
