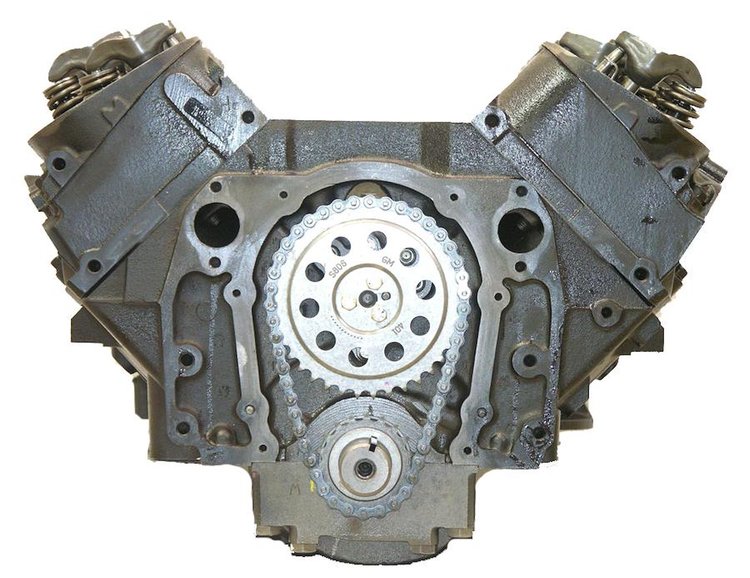

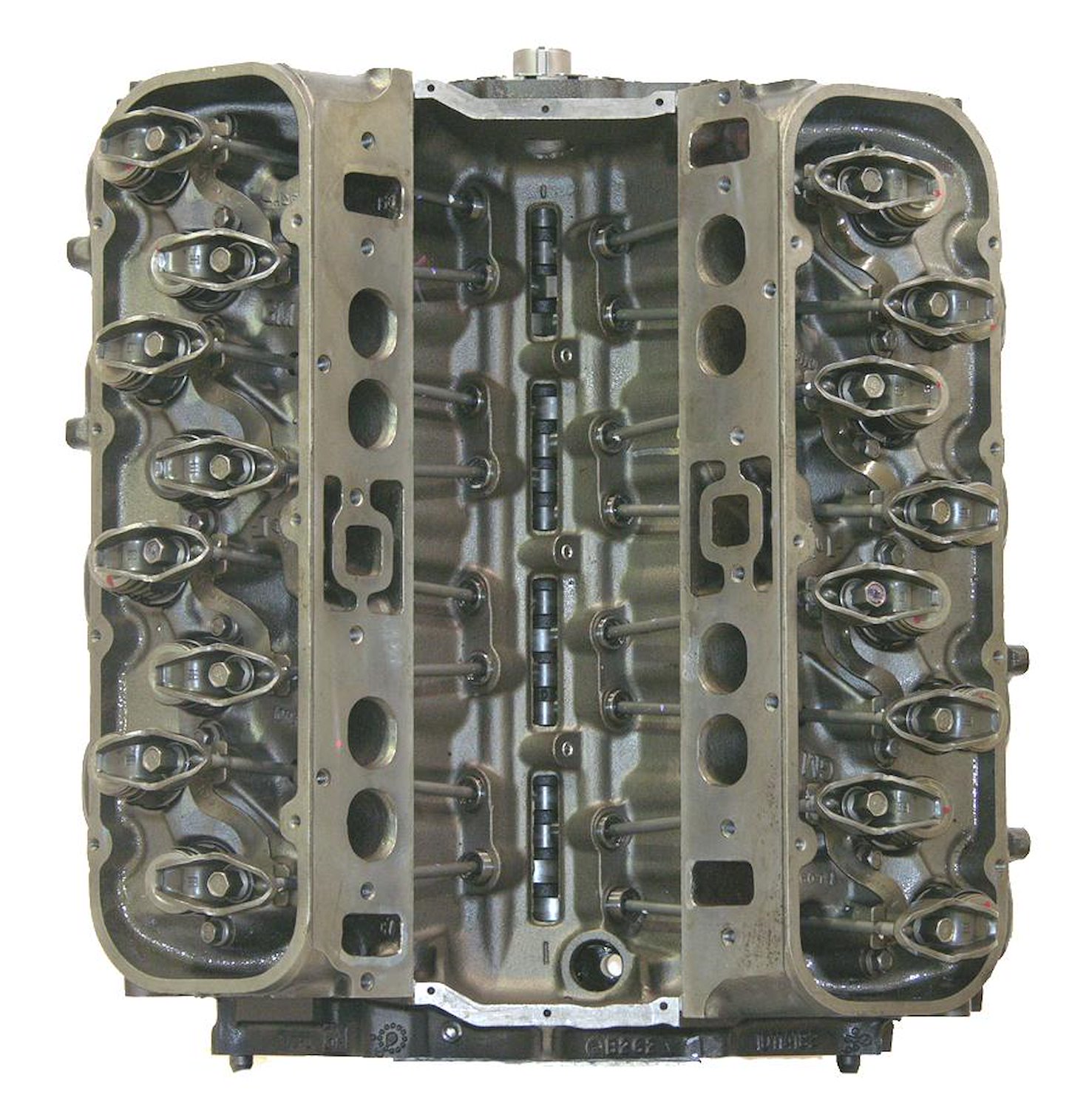

Remanufactured Crate Engine for 1996-1998 Chevy/GMC Medium Duty Trucks with 366ci V8
InfoVehicle Info Needed
ATK ENGINESPART NUMBER: 059-DCTH

Remanufactured Crate Engine for 1996-1998 Chevy/GMC Medium Duty Trucks with 366ci V8

$3,04999
Core Charge: $52000
Truck Freight
ShippingShips on Dec 02, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Gasoline V8
    Remanufactured Crate Engine
  • 1996-1998 Chevy Kodiak C60, C6500 , C70, C7500
  • 1996-1998 GMC Topkick C6000, C6500, C7000, C7500
  • Big Block Chevy 366ci

    ATK Core Return Process
    JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

    Please CLICK HERE for ATK Core Return Process

    Notes:

    • VIN P
    • Head Cast #: 140, 933
    • Block Cast #: 10237298298, 299, 12550311 (check block number)
    • Full circle rear seal (1 piece)
    • 6 bolt timing cover

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first 600 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. Check the engine oil and coolant levels daily.

    At 600 Miles change the engine oil and filter using conventional (non-synthetic) oil. Check fuel and ignition settings; adjust valves (where applicable).

    After the first 5,000 of service synthetic engine oil may be used. Follow your vehicle owner’s manual for service intervals.

    Please CLICK HERE for ATK Warranty

Part TypeEngine
BrandATK ENGINES
Package Height36.0
Package Width36.0
Package Length36.0
Weight565.0 PG
Part CategoryPerformance Parts
Engine TypeReplacement Engine
Cylinder Head MaterialCast iron
Engine Block MaterialCast iron
QuantitySold individually
Engine Displacement366 ci.
Engine Make/SizeChevy Big Block
Vendor Part NumberDCTH
Package Qty1
Package TypeEA
